| SPECIFICATIONS |
| PHYSICAL CHARACTERISTICS |
| Dimension | 170.2*80.7*14mm |
| Weight | 311g |
| Display / Touch Panel | Type: TFTSize: 6.56-inch 20:9Resolution: 720*1612Brightness: 670 NitSupport wet hand and glove touchPolyRainbow Cover, 5-point capacitive screen, Hardness above 7H, Scratch-resistant. |
| Battery | Built-in Polymer Lithium-ion Battery3.85V/5800mAhCharging Power: 33W/PD 3.0 PPS ProtocolBattery Life: About 17h24min (Default 70dB volume; Default 300nits screen brightness; Playing 1080P HD video)Charging Time: About 1h50min |
| Power Adapter | 33W Fast Charge Adapter，Type-C Data Cable（1m）Optional:(EU, US, UK, AU) Choose one of four |
| Audio | Speaker*1 7Ω/1.5WEarphone*1Dual-MICMotor*1Audio SMART PA |
| I/O Interfaces | Type C *1 (Charging/Data/Earphone/Reverse Charging 6W)TF Card*1SIM Card *2 “2 of 3 card slot (Nano Sim+TF or Nano Sim+Nano Sim)”Pogo Pin (Charging) *1 |
| Buttons | Power & Fingerprint *1Volume + Key *1Volume - Key *1Barcode Scanning Key *2 (Barcode scanning by default) |
| Camera | Front 32MP, Fixed FocusRear Main Camera 48MP, Autofocus, Supports PDAFRear Secondary Camera 8MP Wide-angle |
| PERFORMANCE CHARACTERSTICS |
| CPU | MT6789Octa-core, two cores of 2.2GHz + six cores of 2.0GHz2*A76 2.2GHz6*A55 2.0GHz |
| Operating System | Android 14/ GMS |
| Storage | RAM 8GB LPDDR4X ROM 128GB UFS2.2 (Optional 8+256GB for batch order) |
| USER ENVIRONMENT |
| Operating Temp. | -20℃ to 60℃ |
| Storage Temp. | -30℃ to 70℃ |
| Humidity | 95% Non-Condensing |
| Drop Specifications | Withstands drops from 1.5 meters onto composite wood flooring, while powered on. |
| IP Protective Level | IP68，CE，CCC，FCC，MIL-STD-810H，ATEX Zone 2/22 |
| DEVELOPMENT ENVIRONMENT |
| SDK | Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| DATA COMMUNICATION |
| WWAN | GSM(B2/3/5/8)+WCDMA(B1/2/4/5/8)+TDD(B34/38/39/40/41)+FDD(B1/2/3/4/5/7/8/12/13/17/18/19/20//25/26/28A/28B/30/66) |
| WIFI | WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.0G Dual-band WIFI, Supports AP seamless roaming |
| Bluetooth | BT5.1 (BLE) class1 Transmission Distance: 30m |
| GPS | Supports GPS/Beidou/Galileo/GLONASSSupports AGPSCold Start Time:
Standard_Accessories

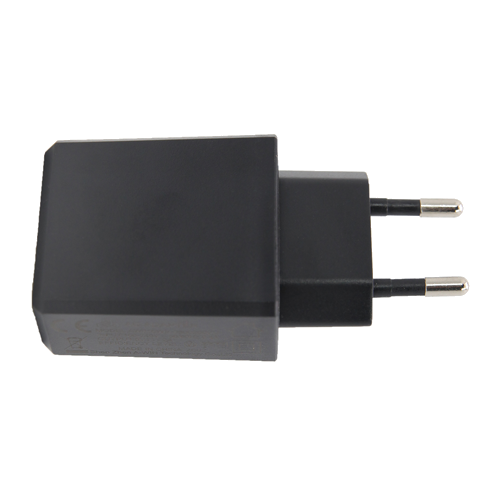

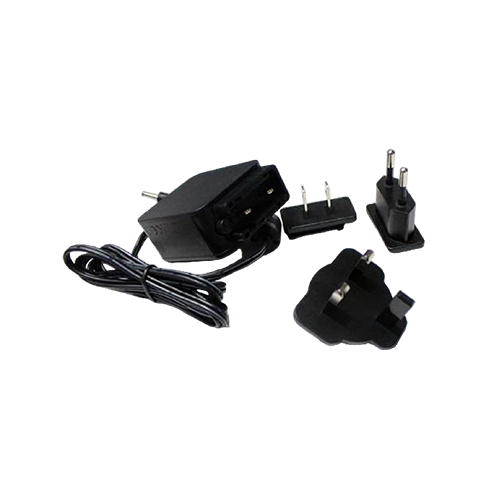

Standard Adaptor
Optional_Accessories

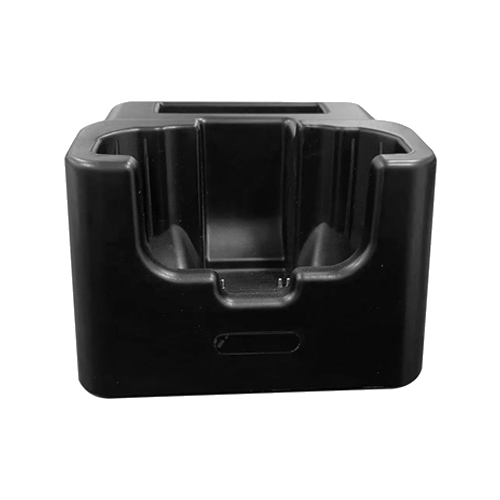

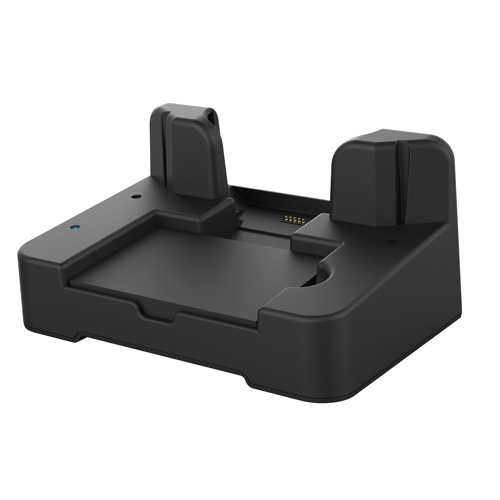

Docking Charger

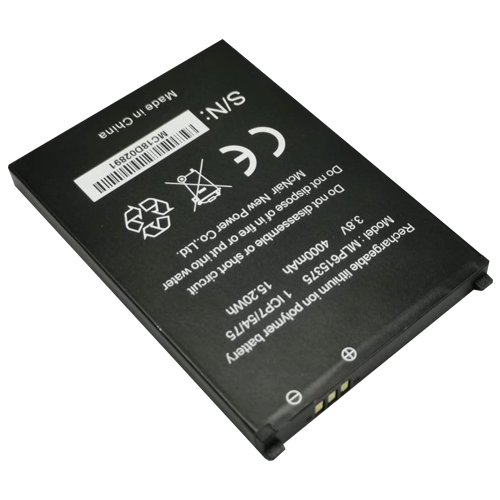

Spare Battery

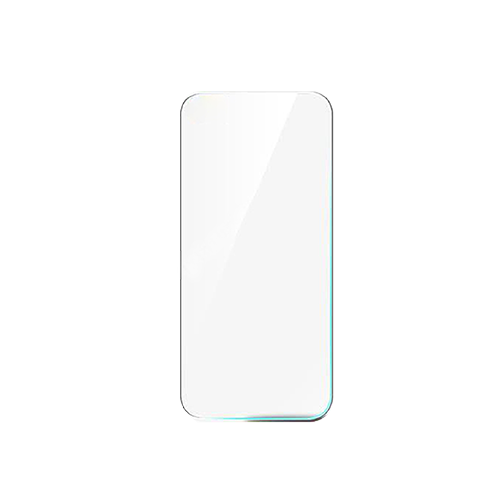

TP protective film
Download
.jpg)

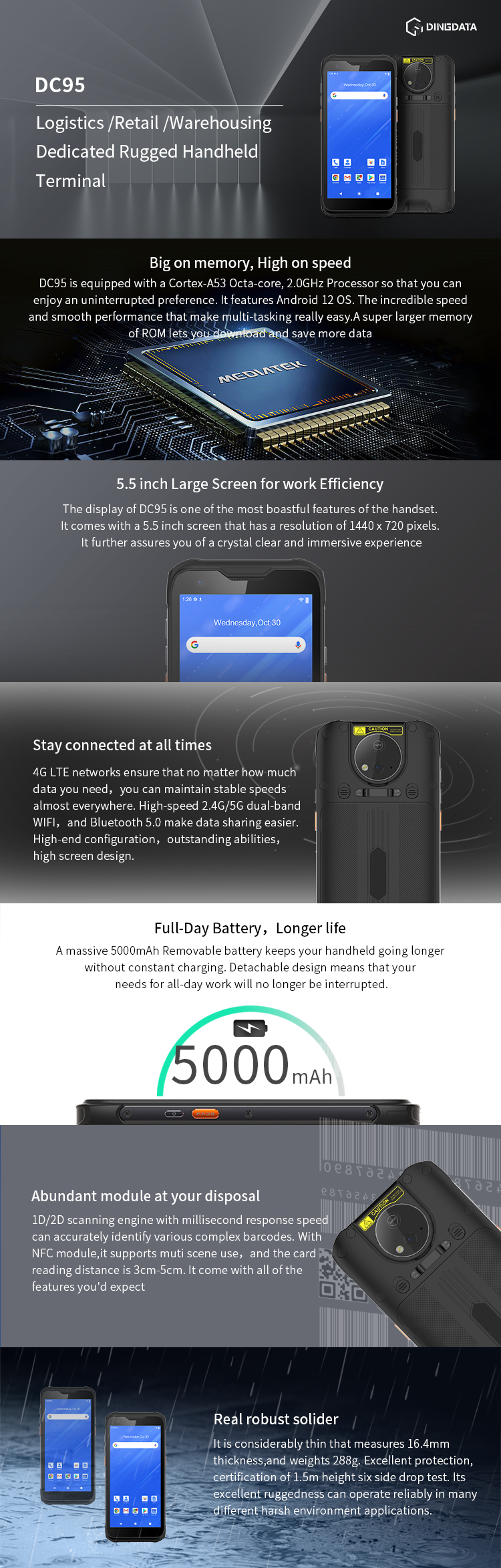

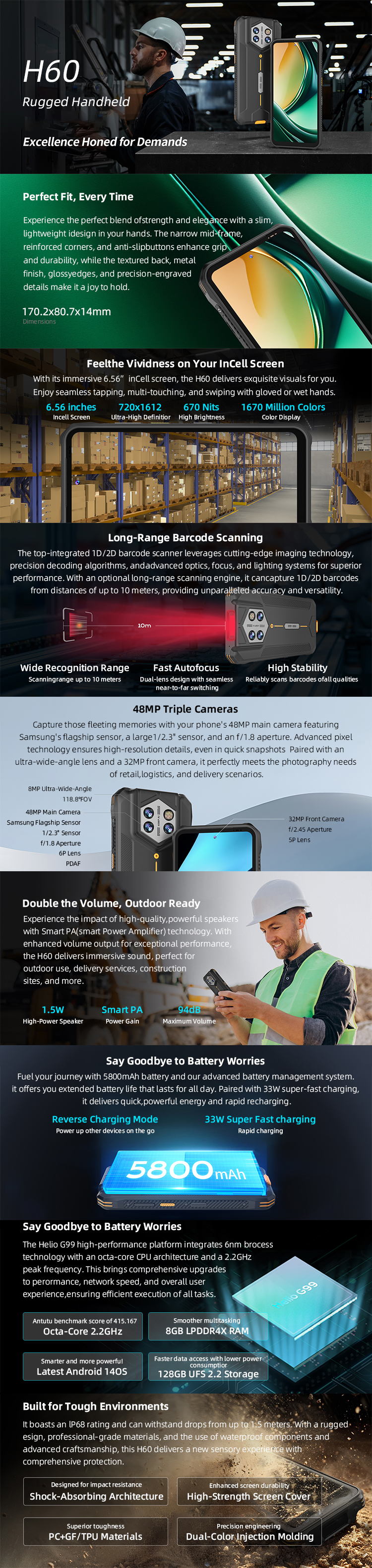

Brochure
|
