Home > Products > Industrial Rugged Tablet > S85TW

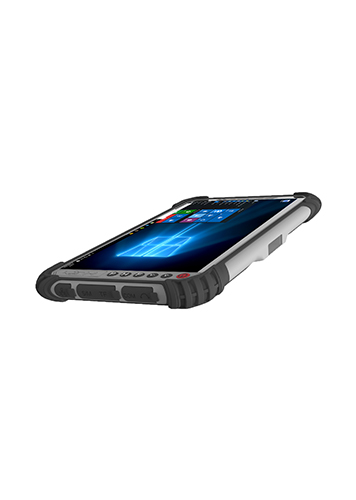

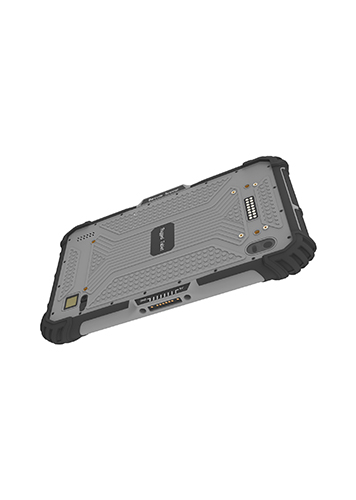

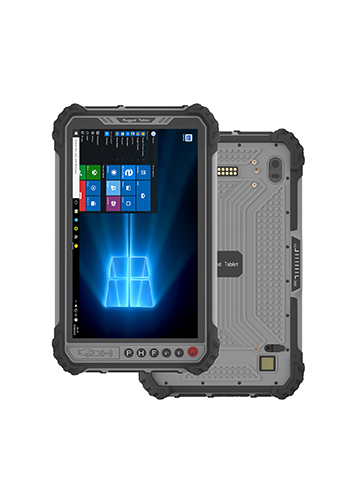

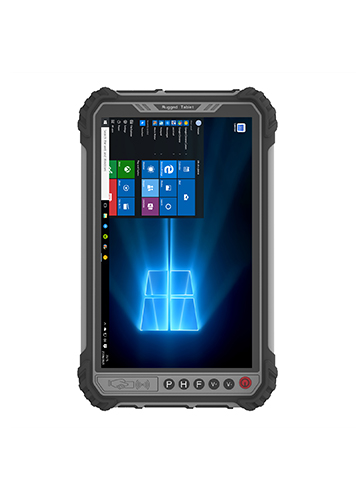

S85TW

8 inch High-Brightness Windows Rugged Tablet

Full-Features to Deliver the Best Service

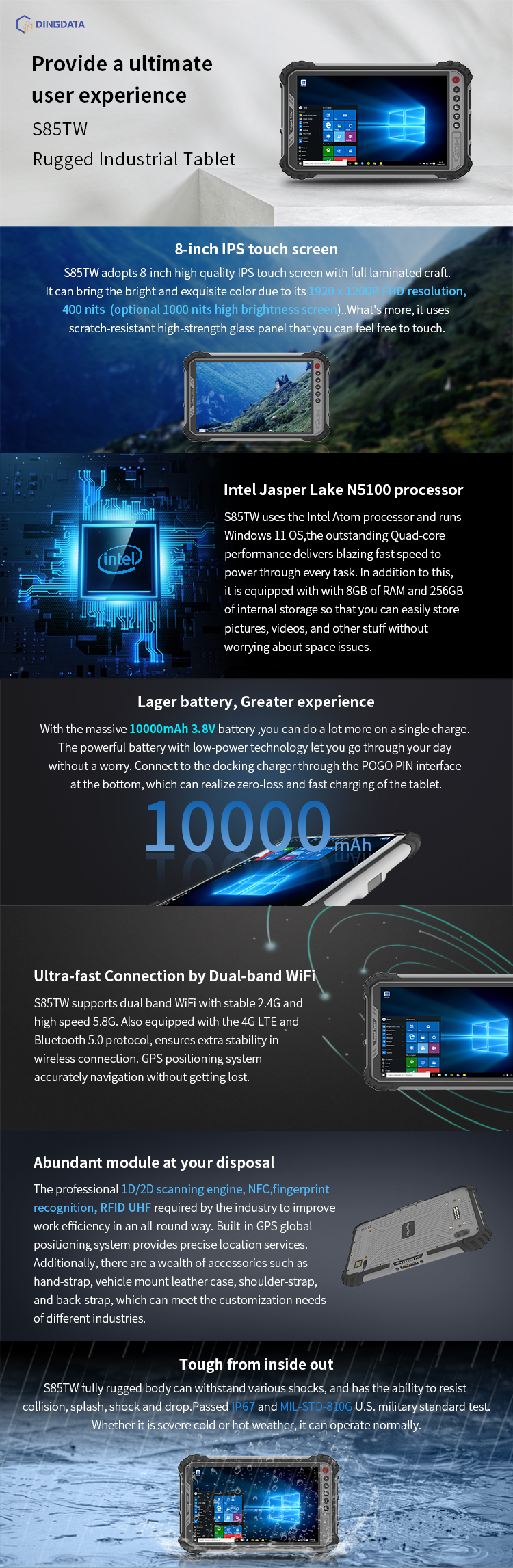

S85TW is 1920*1200 IPS, 1000nit high brightness screen and more suitable for outdoor harsh environment. It support 1D/2D, UHF, NFC, Fingerprint and other functional modules for free selection. Built with Window 11 OS and integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes. IP67 high protection level, in accordance with MIL-STD-810G. It support GPS, Beidou, GLONASS, more accurate positioning. Sunlight visible 1000nit high brightness screen, let you see more clearly.

Features
Specification
Accessories
Download


SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension	23414416.8mm
Weight	700±50g
Display / Touch Panel	8 inch; 12001920; 400nits (MAX), 10 Point TouchOptional: 1000nits display(12001920)
Battery	5000mAh; 7.7VCharging time: about 3HUsage time: about 7H(50% volume, 60% brightness, playing local 1080P video)
Power Adapter	DC Charger (12V 4A)Optional:(EU, US, UK, AU) Choose one of four
Speaker	8Ω 1.5 Watt
I/O Interfaces	1. HDMI12. SIM Card Slot13. RS2321(mini-USB)4. Earphone15. DC1: 4.015mm6. USB 3.0 *3
Buttons	V+ -, Power, "F" for Barcode ScanCustomized Button: P, H(Default No Functionality)
Camera	Front: 5MP; Rear: 13MP
Multi-Media(Hardware Decoding)	1. Photo Viewer: BMP, JPG, GIF, PNG2. Video Format: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
PERFORMANCE CHARACTERSTICS
CPU	Intel Celeron N5100 (Quad Core, Quad Threads; 1.10GHz, Turbo can reach 2.80GHz)
Operating System	Windows 11 Pro(Optional Windows 10 Home/Pro/Iot)
Storage	RAM 8GB, ( optional 4GB )ROM 256GB, (optional 128GB / 512GB)
USER ENVIRONMENT
Operating Temp.	-20℃ to 55℃
Storage Temp.	-25℃ to 80℃
Humidity	Relative Humidity (93±3)% RH
Drop Specifications	Dropping Resistance 1.2 meters
IP Protective Level	Anti-dust & Waterproof IP65, MIL-STD-810G, ISO-9001, CE, FCC, 3C
DATA COMMUNICATION
WWAN	FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28TDD-LTE: B40WCDMA: B1/B2/B4/B5/B8GSM/EDGE: B2/B3/B5/B8Module: SLM770A(EC25-AUX in North America)Supoort optional EU Module
WIFI	802.11a/b/g/n/ac Wireless Internet Wireless AP( Mobile AP )2.4G, 5G
Bluetooth	BT4.2 Version
GPS	BDS, GPS, GLONASS
DATA CAPTUER
Barcode Scanning (optional)	NLS-N1 ，M1 ，SE2707
RFID HF（NFC）	13.56 MHz, Distance: 1-3cm, ISO14443 TYPE A
UHF RFID (optional)	M-500American standard M-500 (902Mhz – 928Mhz)External: card reading distance of 3-5MEuropean standard M-500 (865MHz – 868MHz)External: Card reading distance of 3-5MM-301American standard M-301 (902Mhz – 928Mhz)External: card reading distance of 5-8MEuropean standard M-301 (865MHz – 868MHz)External: Card reading distance of 5-8M
Fingerprint (optional)	ZAZ-0A0 Module or 1020A Module
High Precision GPS(optional)	UM960 Module (Support RTK)
ACCESSORIES

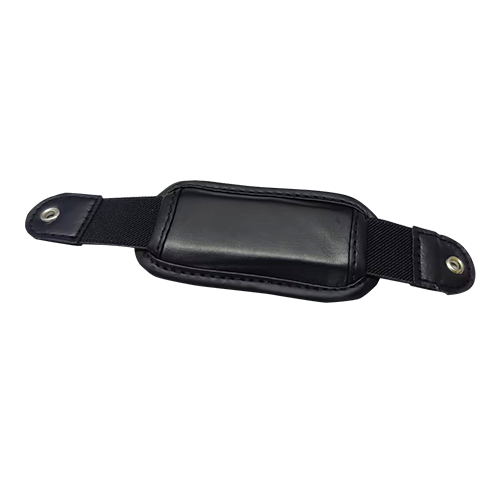

Standard		1xHand Straps; 1xStandard Adaptor

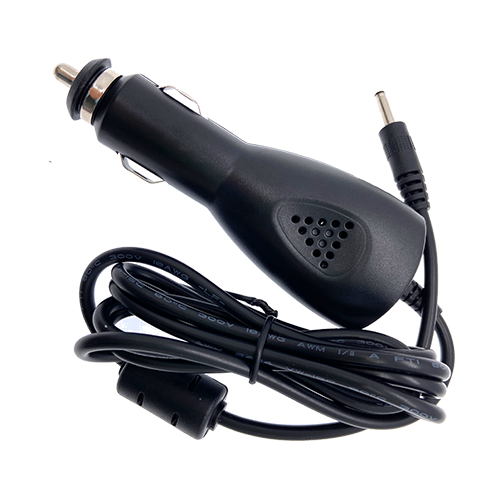

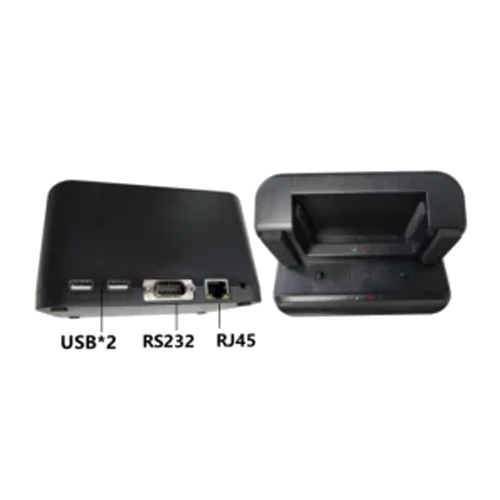

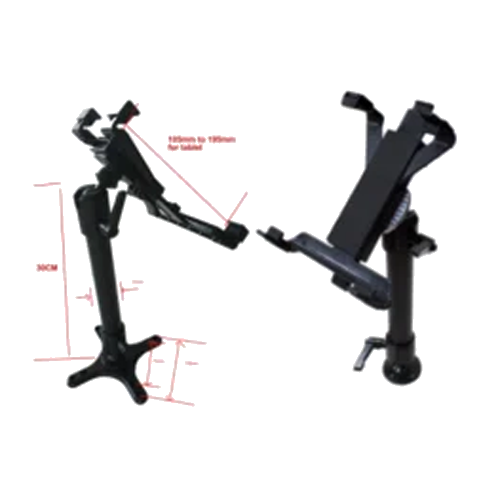

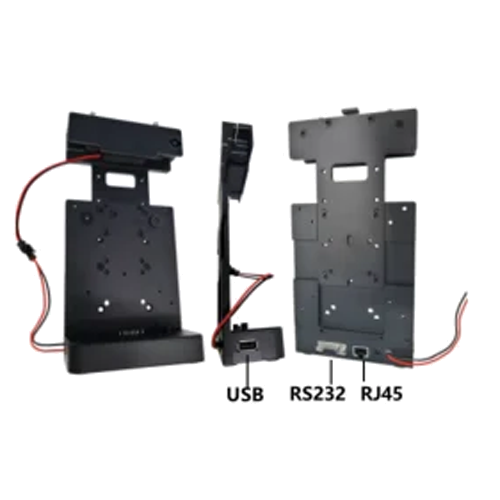

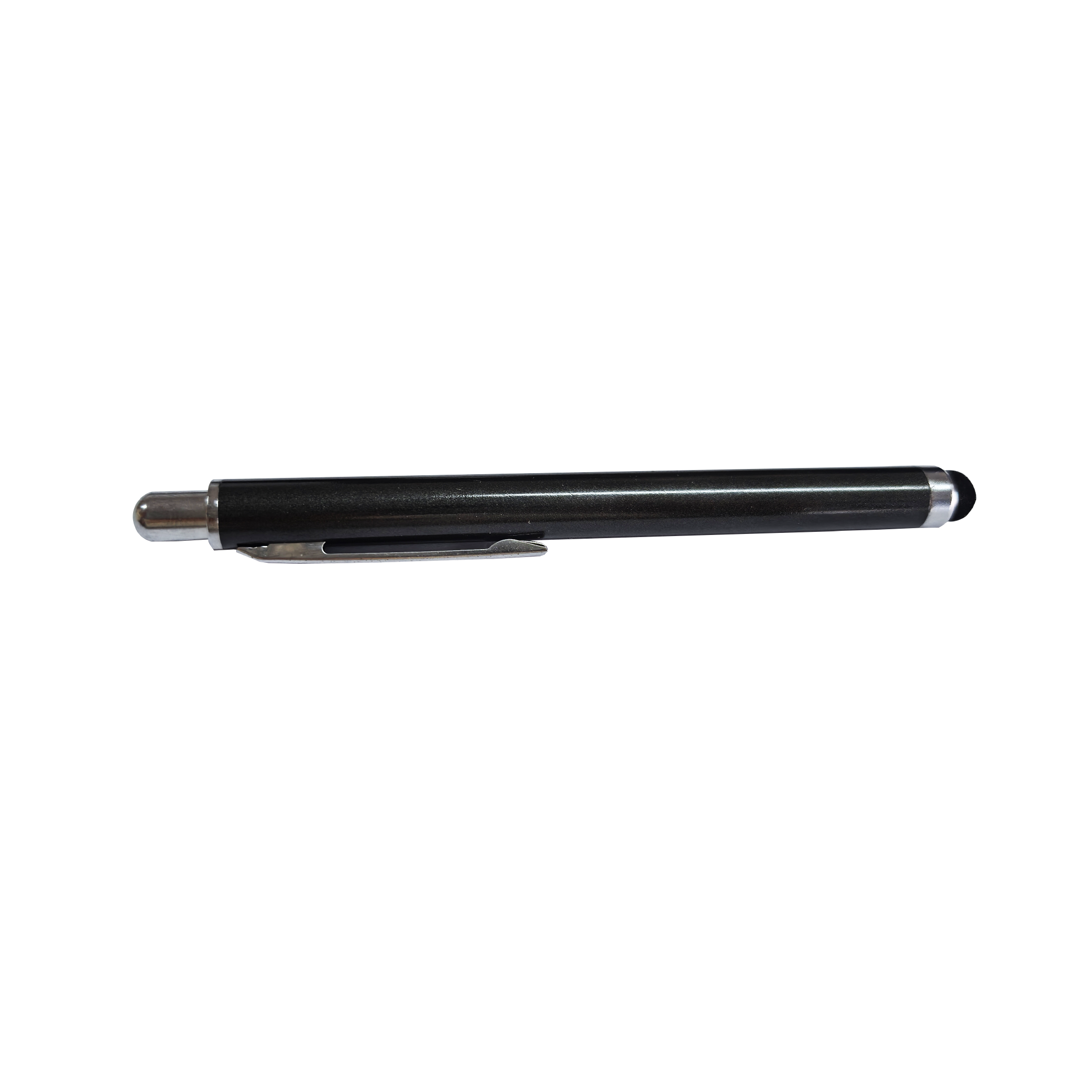

Optional		Hand writing pen,Car charger,Vehicle bracket,Car Docking Charger Mount,Docking Charger
