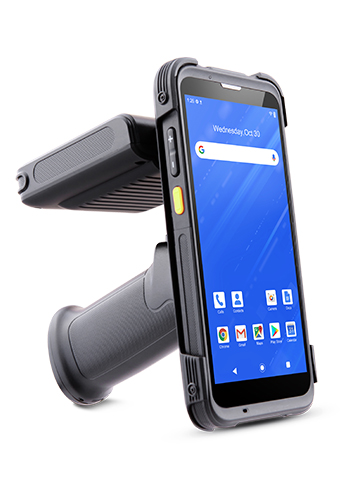

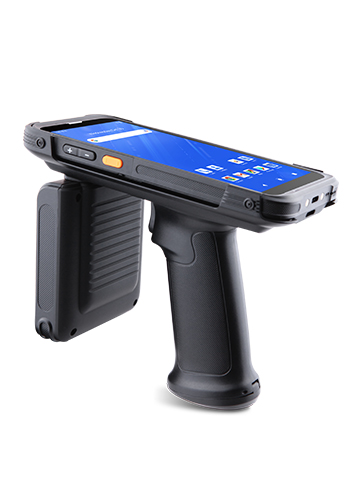

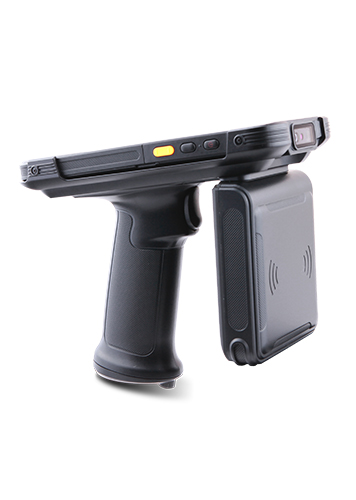

DN65U

Retail/Inventory Dedicated Rugged Handheld UHF Terminal

Full-Features to Deliver the Best Service

DN65U is a highly expandable large-screen rugged handheld computer. Equipped with Qualcomm octa-core processor and Android 9 / 11 OS, DN65U comes with a 5.5-inch HD display, barcode scanning, and NFC functions. The device supports quick charge and UHF sled for high extensibility. The premium Android 11 version offers optional fingerprint recognition, volume measurement, built-in UHF functions and with Wi-Fi 6-ready platform for higher data throughput and security that fully satisfy the needs in logistics,warehouse,manufacturing, retail, etc. applications.

Features
Specification
Accessories
Download


Standard_Accessories

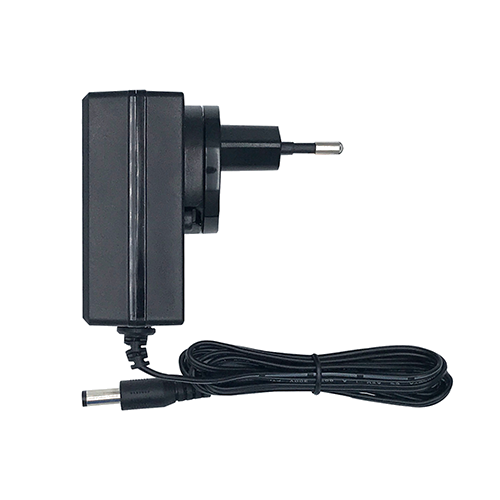

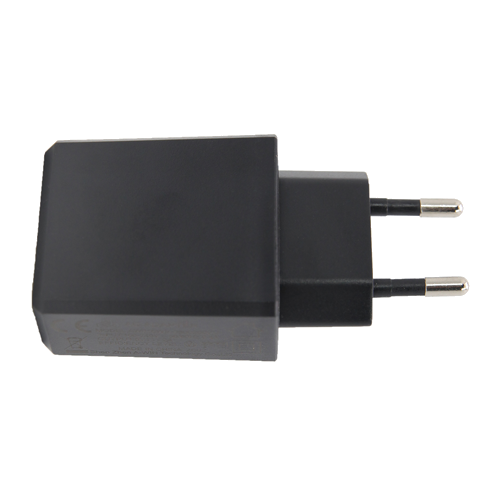

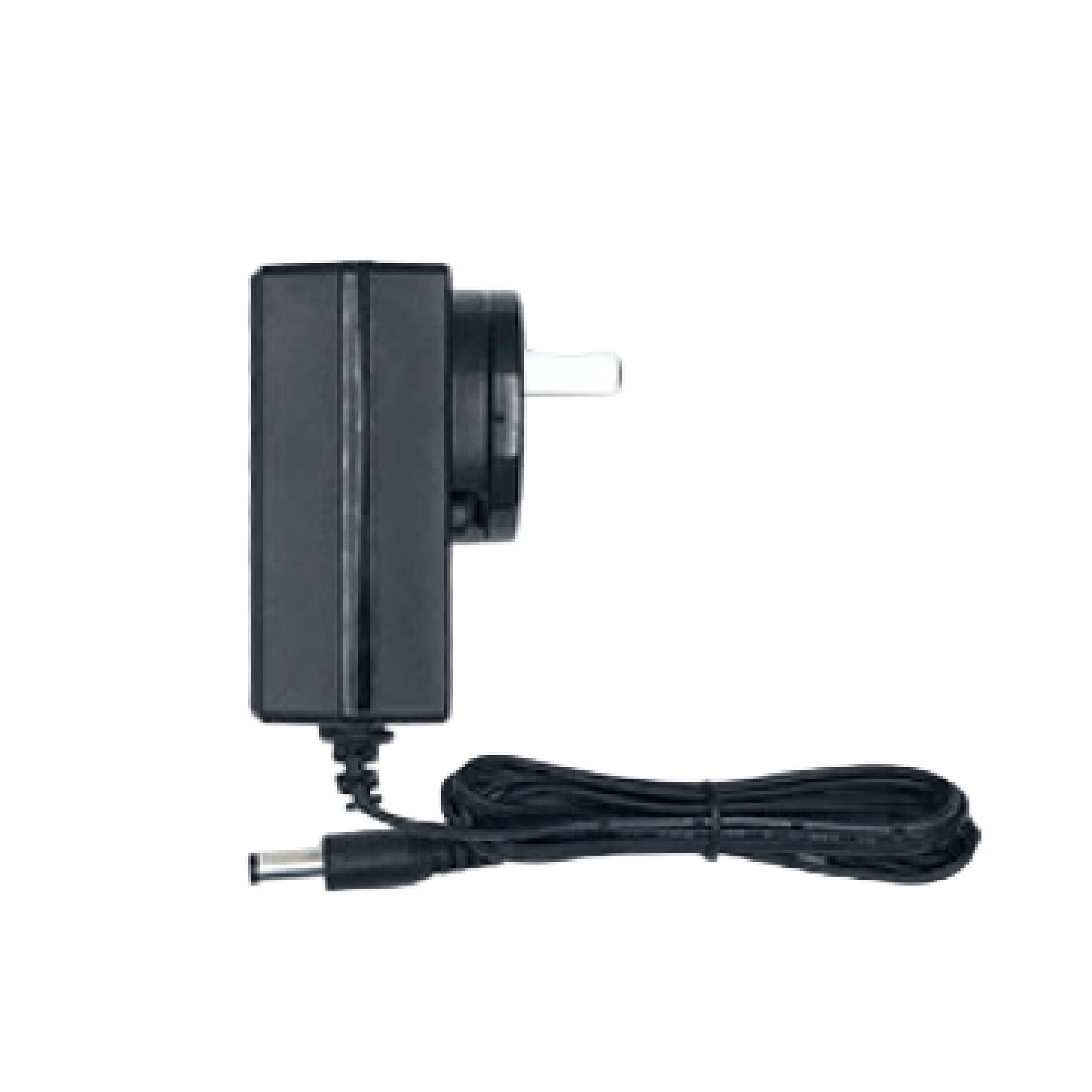

Power Adapter

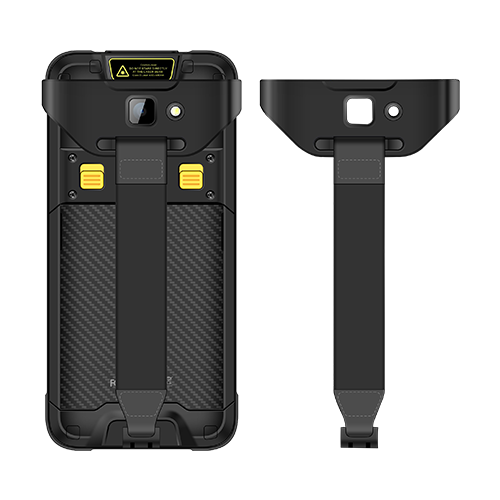

Wrist Strap

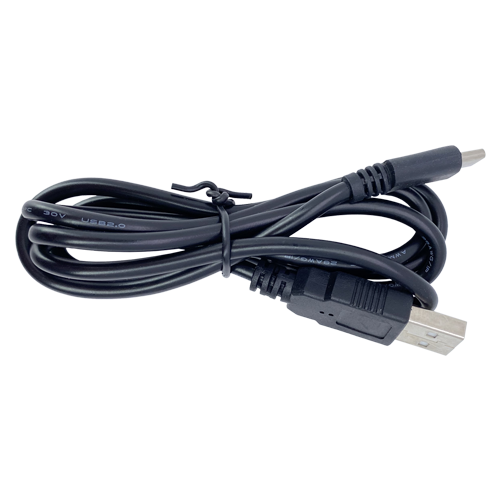

USB Cable

Optional_Accessories

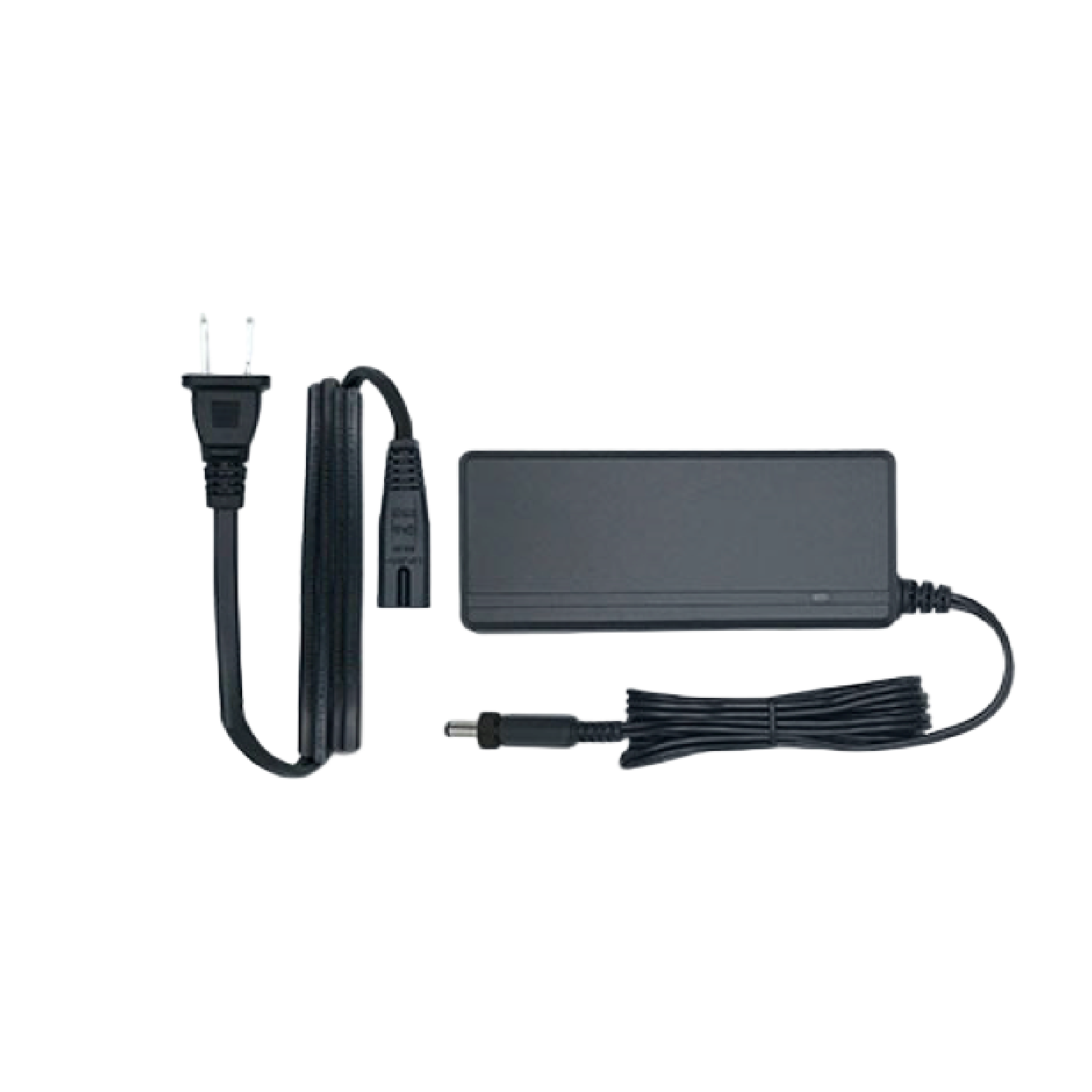

Adapter and USB Cable

Mian Battery docking-1

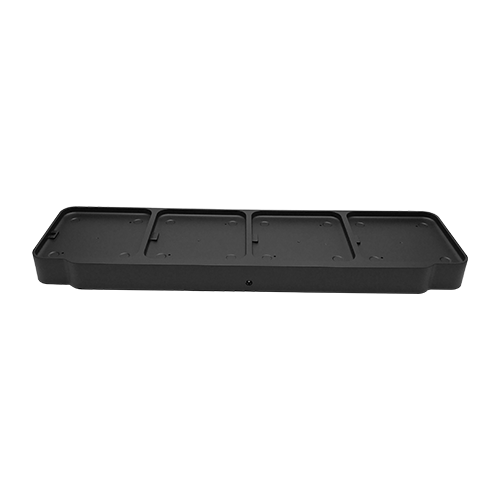

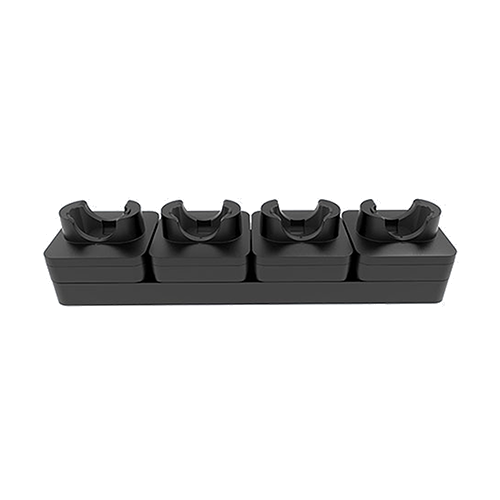

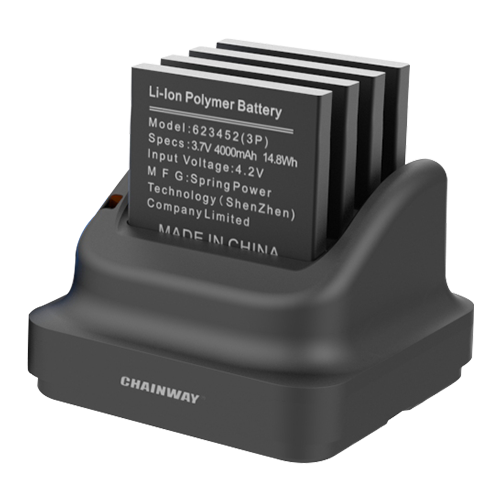

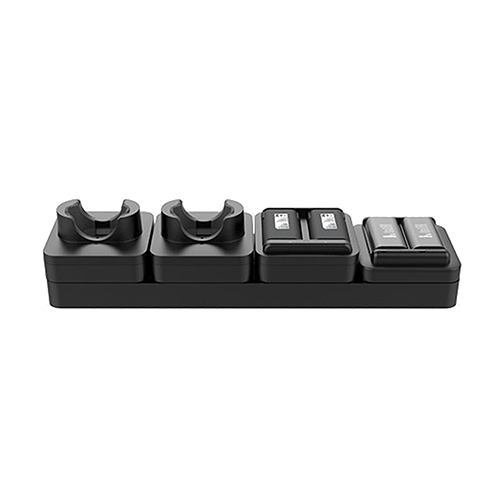

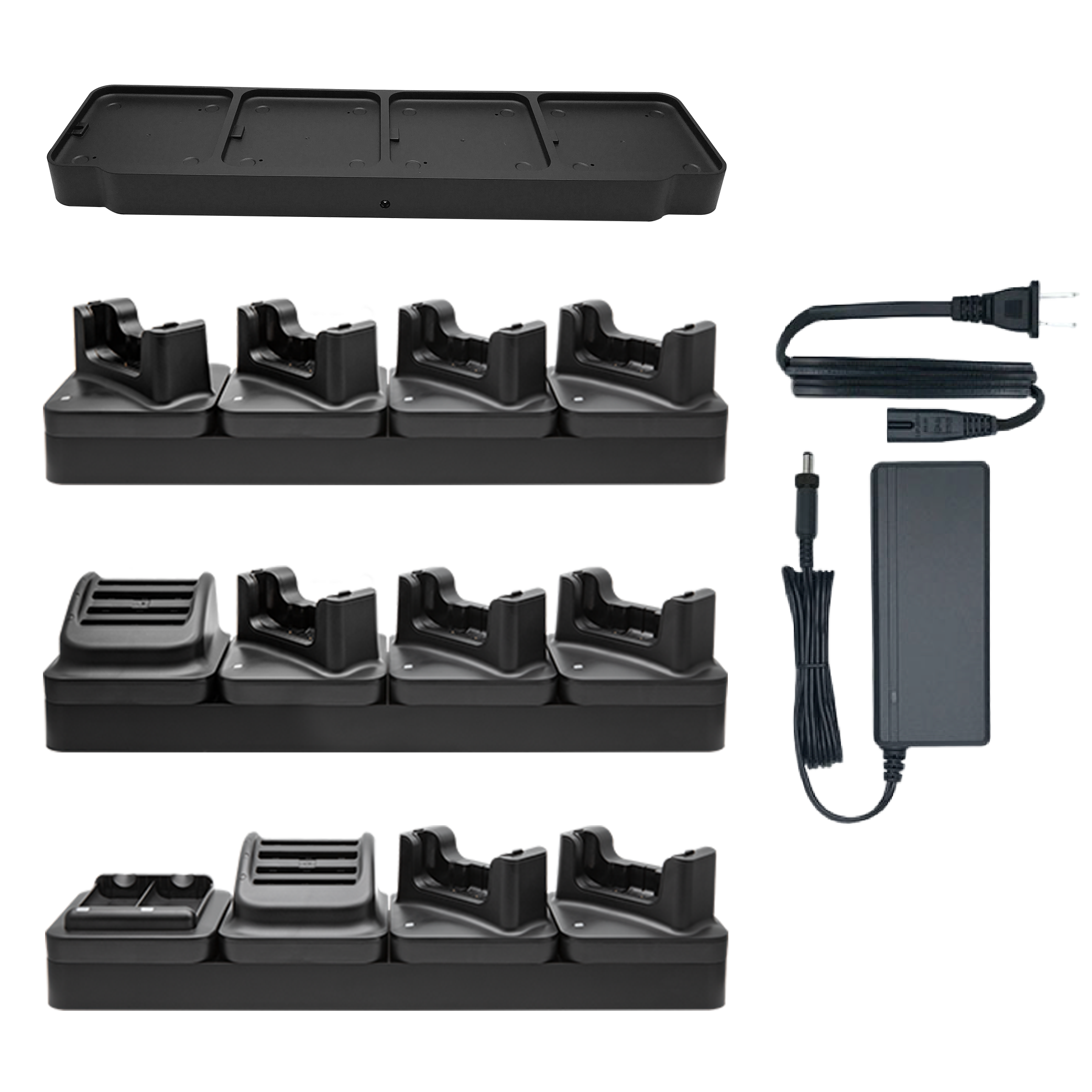

Docking Charger-4

Pistol Grip Batter docking

Mian Battery docking-2

Pistol Grip Battery-2

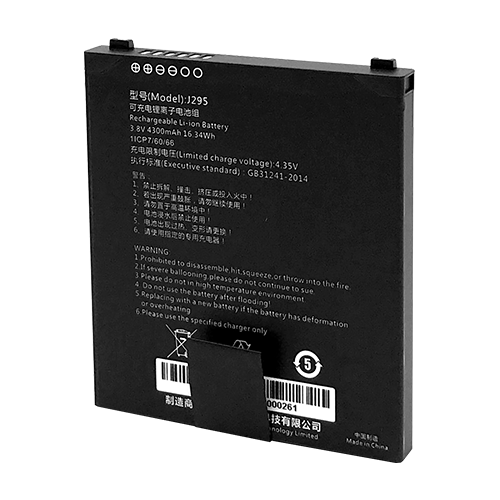

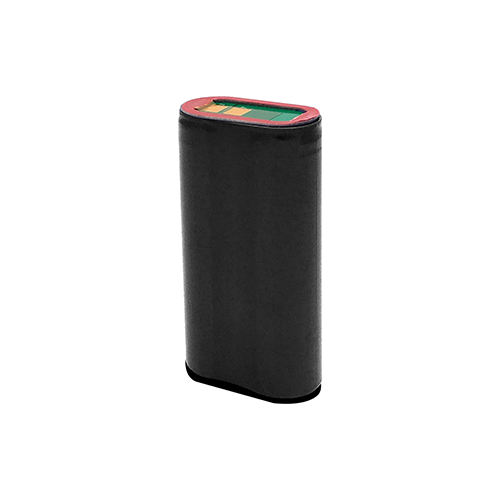

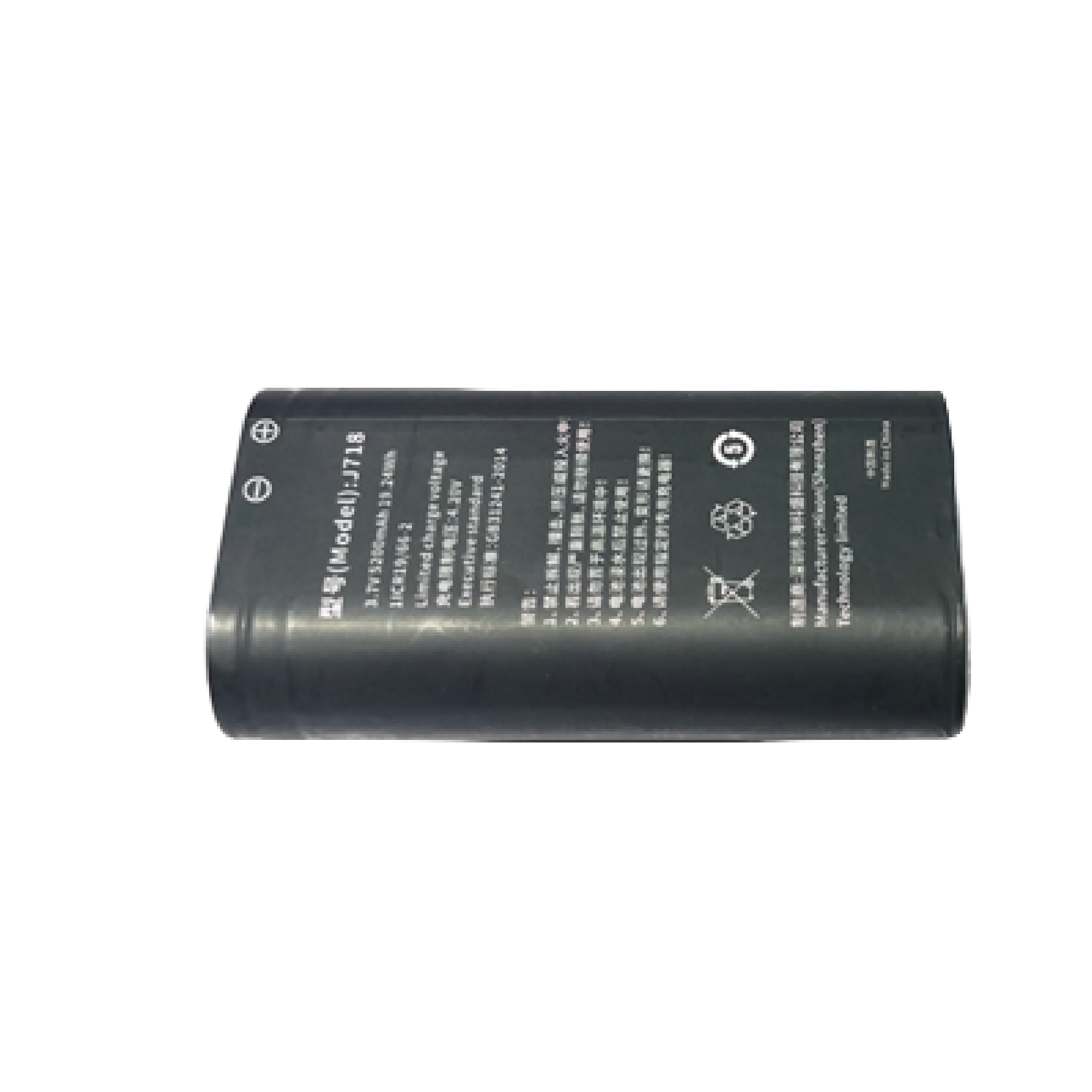

Mian Battery

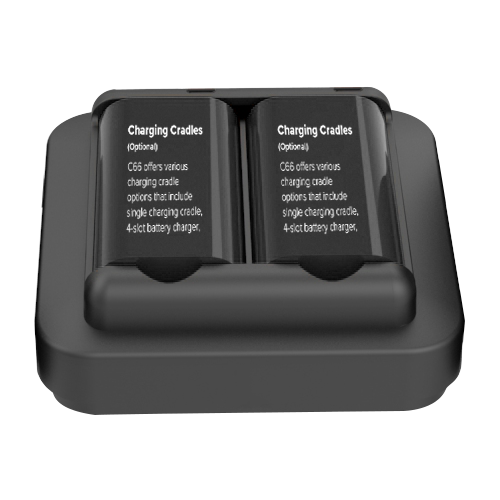

Docking Charger-2

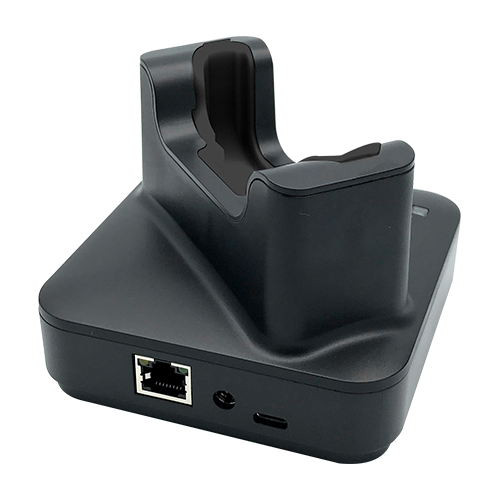

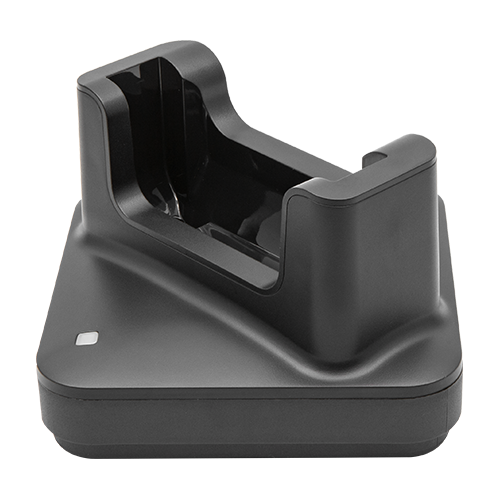

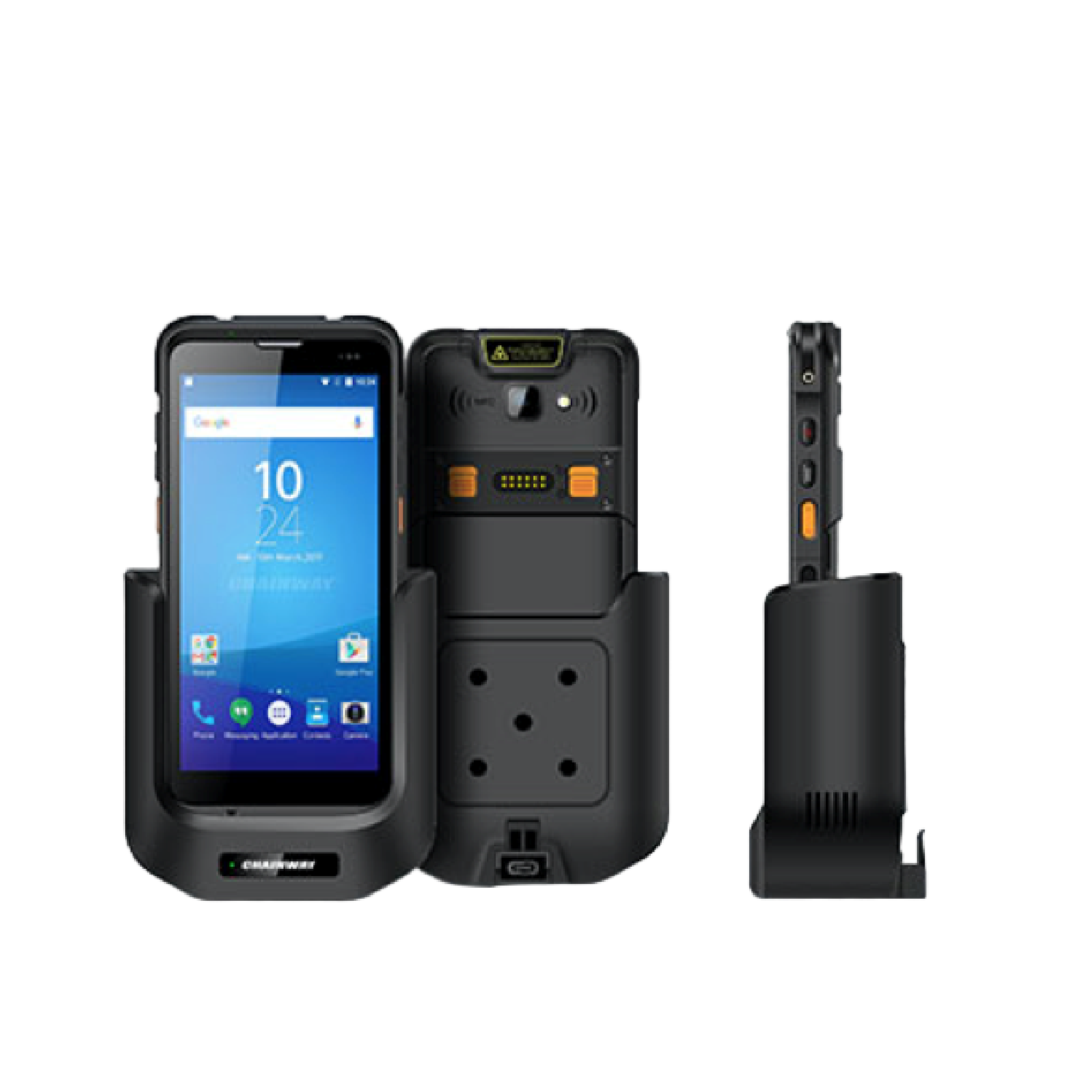

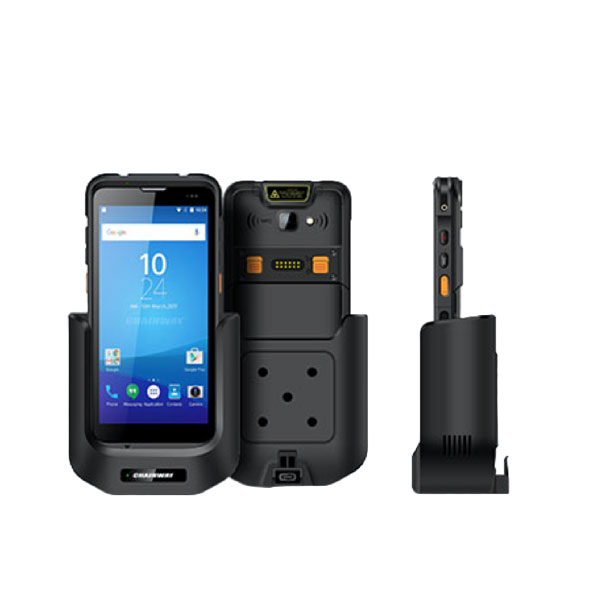

Docking Charger-1

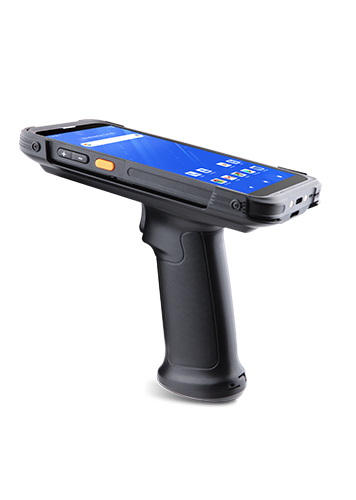

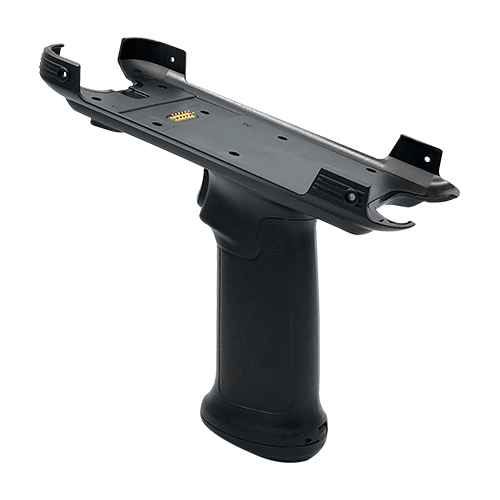

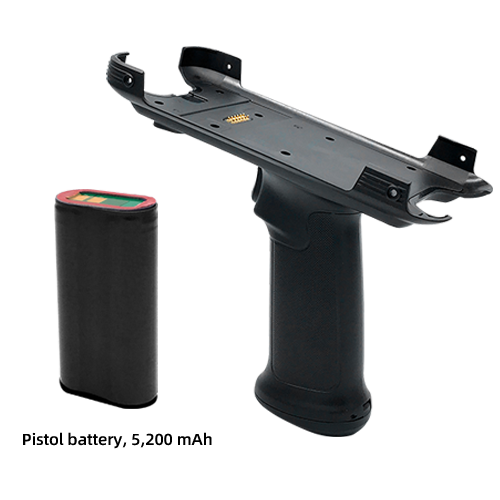

Pistol Grip

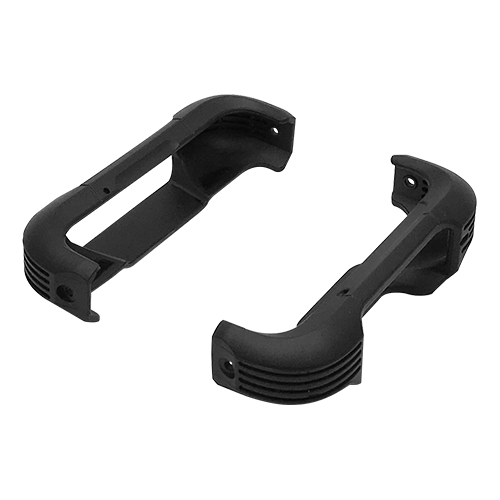

Rubber Bumper

Model	DN65U
Dimension	160.0 x 76.0 x 15.5 / 17.0 mm
OS	Android 9/11
CPU	Android 9: Qualcomm Snapdragon™450 Octa-core, 1.8 GHz Android 11: Qualcomm Snapdragon™662 Octa-core, 2.0 GHz
Weight	287g / 10.12 oz.(device with battery) 297g / 10.47oz.(device with battery, Fingerprint / Volume Measurement / Built-in UHF)
Display	5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720
Memory	3 GB + 32 GB / 4 GB + 64 GB
Battery Capacity	Removable main battery (normal version:4420 mAh ; Android 11.0 with fingerprint / built-in UHF / volume measurement version: 5200mAh )
Expansion slot	Micro SD(TF) card slot up to 128GB
Resolution	IPS IGZO 1440 x 720
Keypad	1 power key, 2 scan keys, 2 volume keys
GNSS	GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
SIM	Dual SIM Card
2D barcode (Optional)	Zebra: SE4710/SE2100; Honeywell: N6603; E3200; IA166S
RFID UHF(Optional)	Impinj E710 / R2000 or Built-in UHF module
Fingerprint(Optional)	Capacitive TCS1
IP rating	IP65
Drop Resistance	Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range
Camera	Rear 13MP Autofocus with flash
Interface Configuration	Android 9.0: USB Type-C, USB 3.0, OTG, extended thimble;Android 11.0: USB Type-C, USB 3.1, OTG, extended thimble;
3G/4G (Optional)	WWAN (Europe, Asia):4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41WWAN(America):4G: Android 9: B2/B4/B5/B7/B12/B17/B38, Android 11: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38
Operate Temperature	-20°C ～ 50 °C
Store Temperature	-40°C ～ 70 °C
NFC/RFID	Supporting agreement: 13.56 MHz, ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Wifi	Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band,IPV4, IPV6, 5G PA;
Bluetooth	Android 9: Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDRAndroid 11: Bluetooth 5.1
Optional accessories	UHF back clip + handle (5200 mAh, one button) ; Wrist Strap; Rubber Bumper; Charging Cradle,etc
