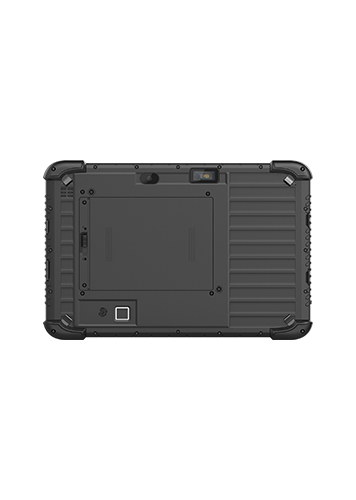

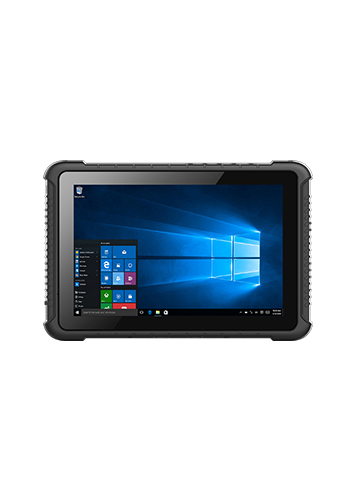

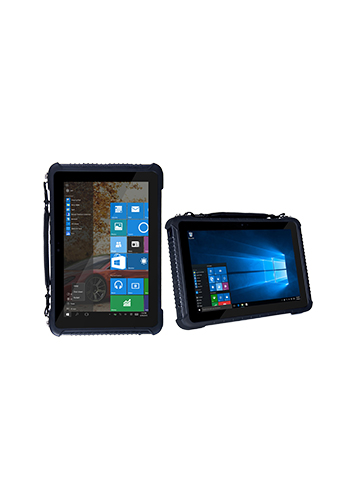

S16TWP

10.1 inch Intel Windows Rugged Tablet PC

Full-Features to Deliver the Best Service

S16TWP support for Windows 11 Pro system, it built-in 5000mAh/7.6V pluggable battery, 10 hours of machine endurance. It up to IP65 high protection level, in accordance with MIL-STD-810G. At the same time, support GPS, Glonass, more accurate positioning and 1D/2D, NFC, ID card and other functional modules for free selection. Support aviation plug to meet the requirements of industrial electricity. Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes.

Features
Specification
Accessories
Download

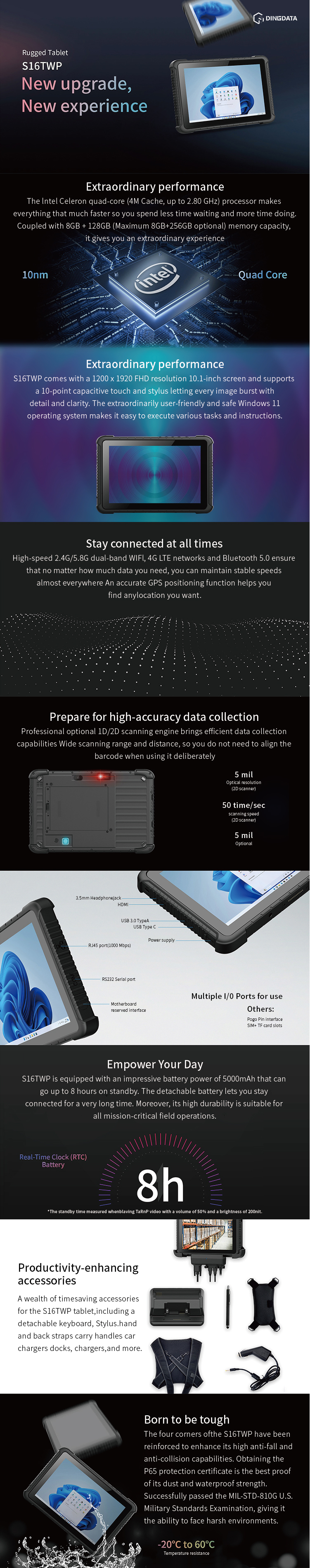

S16TWP_画板 1.jpg

SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension	280.418726.6 mm
Weight	1014g
Display / Touch Panel	Type: FHD Size: 10.1 inch 16:10Resolution: 1200*1920Brightness: 400nit10 point capacitive touch screen
Battery	5000mAh/7.4V / Removable Li-polyment Battery / 6.5 hours
Power Adapter	AC100V ~ 240V, 50Hz/60Hz, DC 12V/4AOptional:(EU, US, UK, AU) Choose one of four
Speaker	8Ω/1W Waterproof BOX Speaker *1

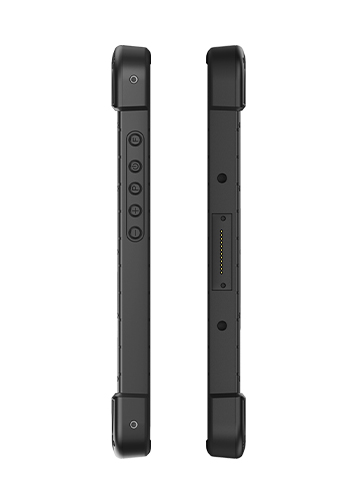

I/O Interfaces	HDMI 2.0a Mini x 1, USB Type-C x 1, USB 3.0 Type-A x 1, SIM Card x 1, TF Card x 1,12PIN Pogo Pin x 1, DB9 RS232 x 1, RJ45 x 1, Φ3.5mm standard earphone jack x 1,DC 12V 4A ∮4.0mm jack *1
Buttons	Power 1Volume Adjustment Key (+) 1Volume Adjustment Key (-) 1F Key 1 (Barcode Scanning), When there is no scanning function, it can be customizedP Key *1 (HOME Key), When there is no scanning function, it can be customized
Camera	Front 5.0MP (MIPI) Rear 8.0MP (MIPI)
PERFORMANCE CHARACTERSTICS
CPU	Intel® Celeron® Processor N5100
Operating System	Windows 11 Pro(Optional:Home/IOT)
Storage	RAM 8GB DDR + ROM 128GB SSD removable
USER ENVIRONMENT
Operating Temp.	-20℃ to 60℃
Storage Temp.	-30℃ to 70℃
Humidity	95%, no condensation
Drop Specifications	1.22m drop resistance
IP Protective Level	IP65 certified, MIL-STD-810G certified
DATA COMMUNICATION
WWAN	MeiG 750 VELTE-FDD: B1/3/5/7/8/20LTE-TDD: B40WCDMA: B1/5/8GSM: 900/1800China (Unicom, mobile support is poor, only B8 supports without TDD band) Europe, Middle East, Africa, Taiwan, JapanOptional, South America or North America module
WIFI	Wi-Fi 802.11 a/b/g/n/ac (2.4G+5.8G)
Bluetooth	BT5.1 Transmission distance: 10m
GPS	Support GPS, Glonass
DATA CAPTUER
Barcode Scanning (optional)	Honeywell N4680Optical resolution: 5milScanning speed: 50 times /sSupport code: PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse
RFID HF/ NFC (optional)	NXP300NXP NFC 13.56MHz supports 14,443A/14,443B/15,693/18,092/mobile protocol under ISO/IEC. Card reading distance: 4cm
Fingerprint scanner	Fingerprint(optional)
ACCESSORIES
Standard	1xHand Straps，1xStandard Adaptor，1xCarry Handle strap，1xOTG Cable

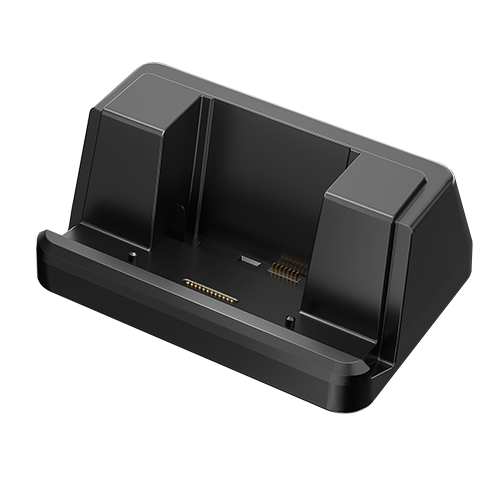

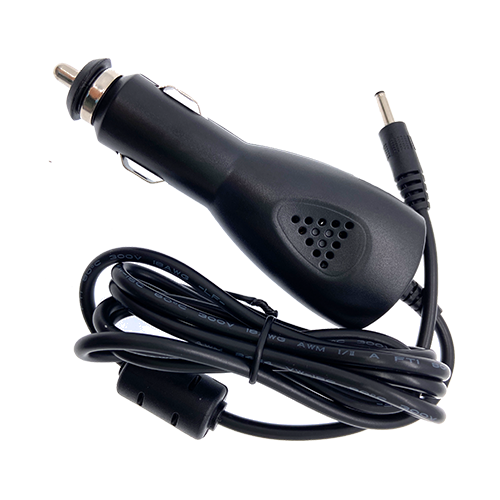

Optional	Hand writing pen，Shoulder girdle，Car charger，Vehicle bracket holder M16，Docking Charger，Back Straps，Spare Replace Battery，Leather case

Standard_Accessories

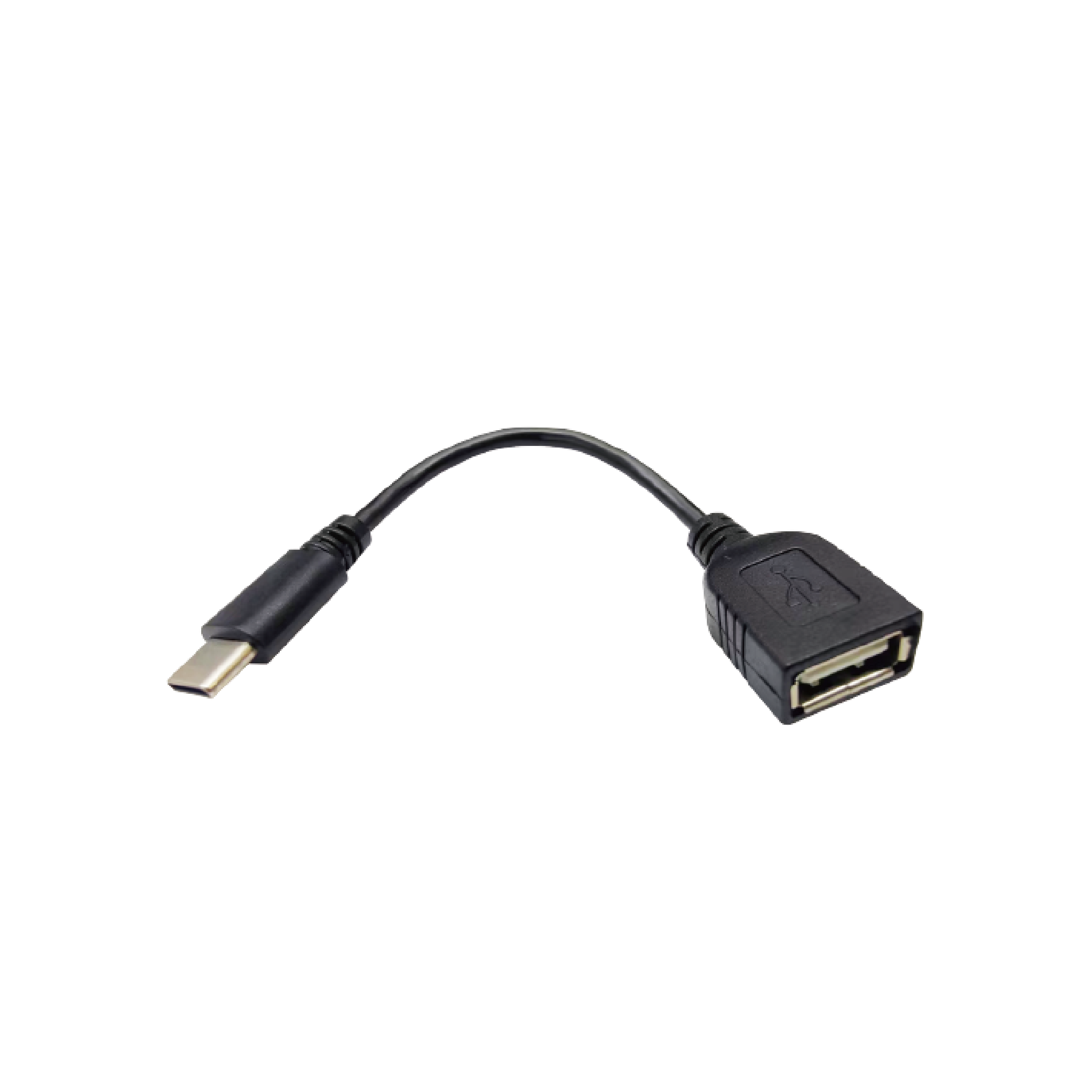

OTG Cable

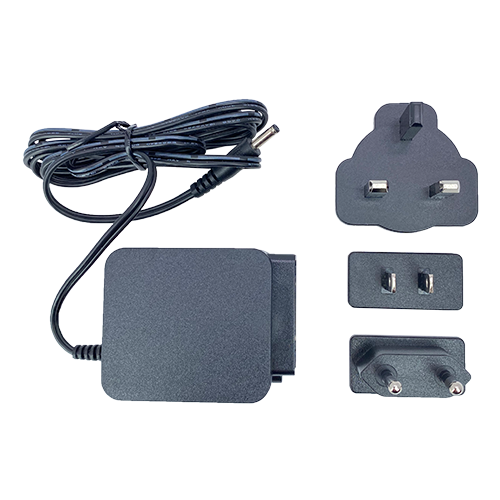

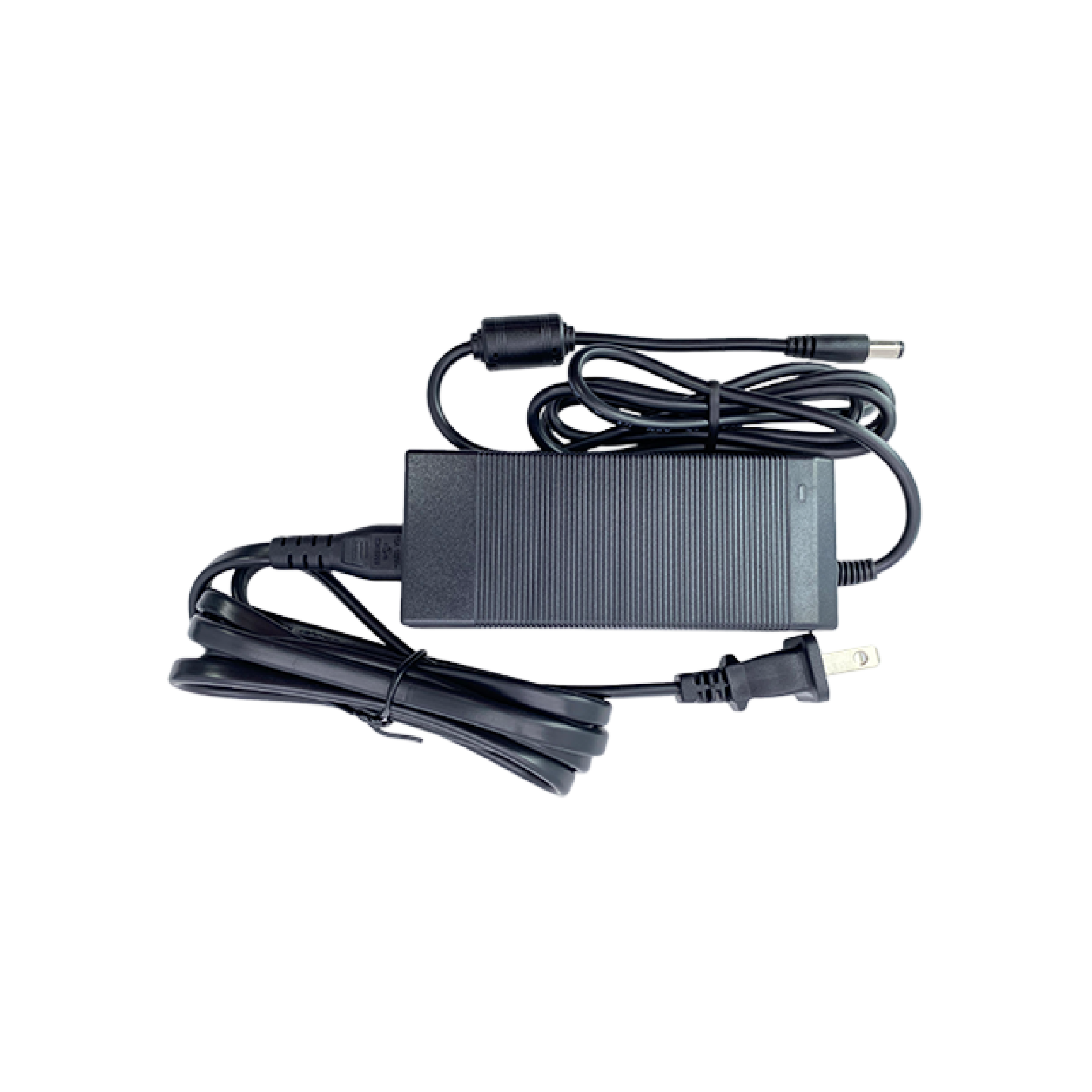

Standard Adaptor

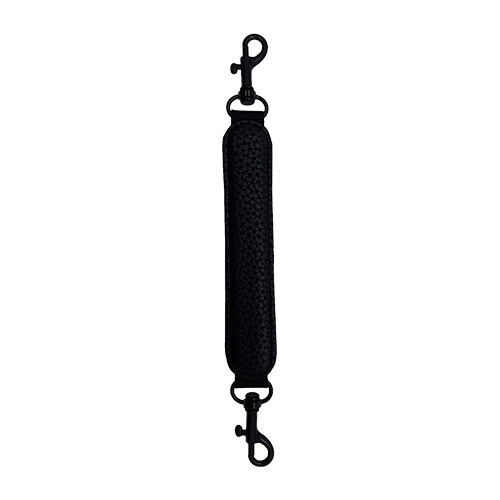

Carry handle

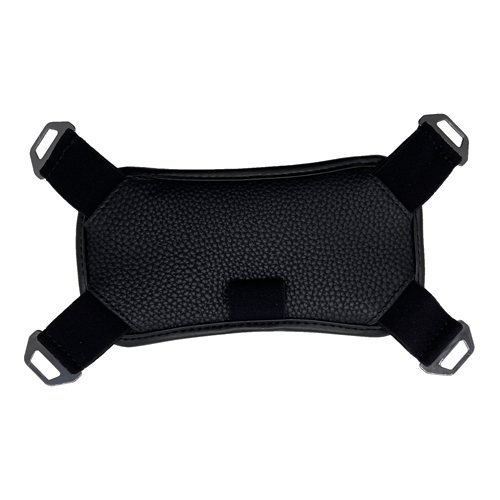

Hand-strap

Optional_Accessories

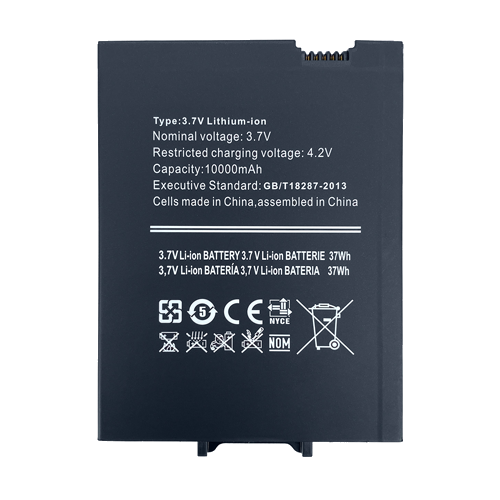

Removeable Spare Battery

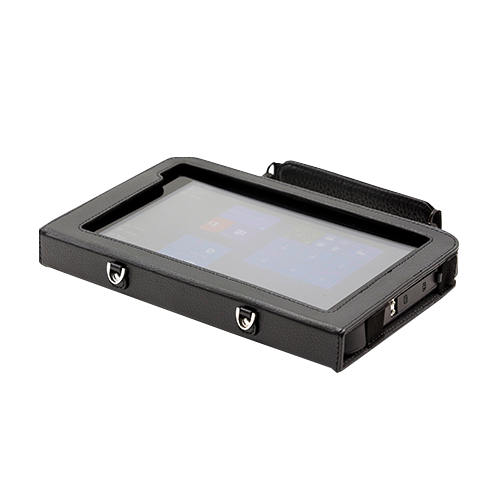

Leather case

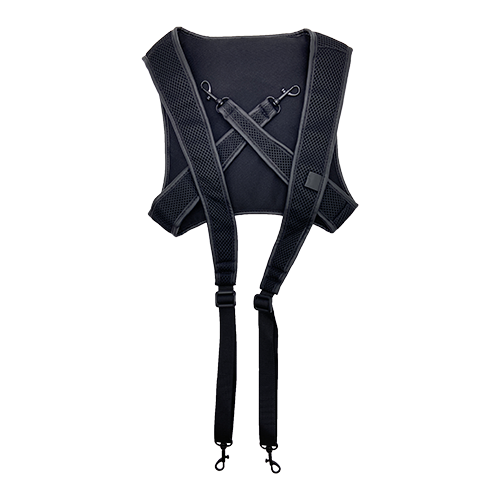

Shoulder girdle

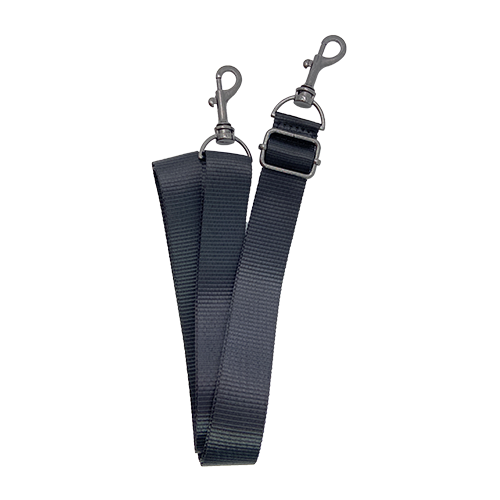

Straps

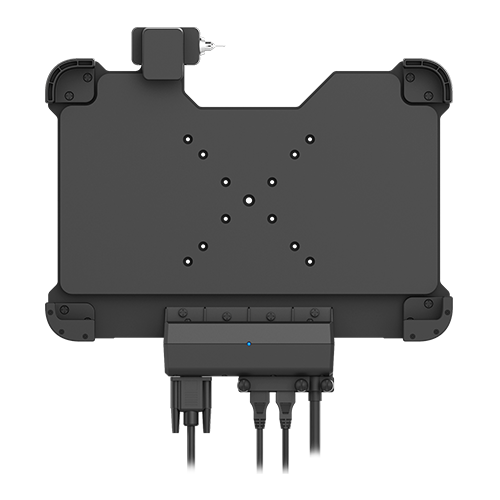

Vehicle Mount
