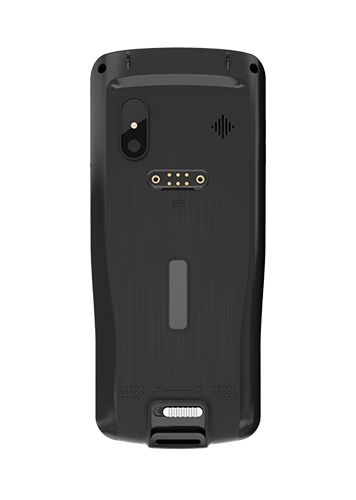

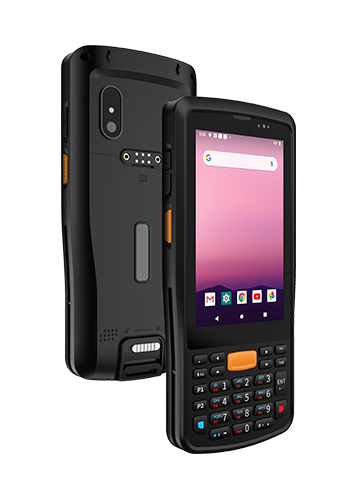

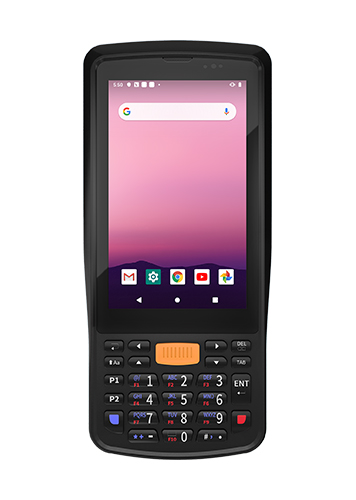

R40H
Retail/Warehouse Dedicated Rugged Terminal PDA
Full-Features to Deliver the Best Service
R40H is equipped with a MTK OCTA Core 64 bit 2.0 GHz high performance processor so that you can enjoy an uninterrupted preference. It features Android latest 11 OS. The incredible speed and smooth performance that make multi-tasking really easy.A super larger memory of ROM lets you download and save more data.1D/2D scanning engine with millisecond response speed can accurately identify various complex barcodes. With NFC module,it supports muti scene use,and the card reading distance is 3cm-5cm. It come with all of the features you'd expect.A massive 4500mAh Removable battery keeps your handheld going longer without constant charging. Detachable design means that your needs for all-day work will no longer be interrupted.

| SPECIFICATIONS | ||
| PHYSICAL CHARACTERISTICS | ||
| Dimension | 162.4*72.8*19.4 mm | |
| Weight | 250g | |
| Display / Touch Panel | 4.0" FHD(480*800), 300nits sunlight readable display5-point capacitive touchscreen | |
| Battery | AC adapter: 100-240V, 50Hz-60Hz, 10WBattery Li-Ion, 3.8V, 4500mAh, 16 hours | |
| Power Adapter | AC100V ~ 240V、50Hz/60Hz output DC 5V/2AOptional:(EU, US, UK, AU) Choose one of four | |
| Audio | Integrated microphoneIntegrated 0.8W speakerIntegrated receiverClass k audio amplifier | |

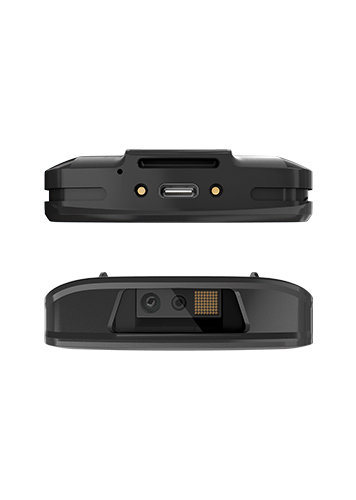

| I/O Interfaces | USB2.0(micro USB) x12 of 3 card slot (Nano Sim+Micro SD or Nano Sim+Nano Sim)2pin POGOPin1 x16pin POGOPin2 x1 | |
| Buttons | Physical digital function buttons | |
| Keypad | 5 buttons(1 user-definable key) | |
| Camera | Integrated 13.0 MP rear camera | |
| PERFORMANCE CHARACTERSTICS | ||
| CPU | MT6765 octa-core | |
| Operating System | Android 15/GMS | |
| Storage | RAM 4GB/ ROM 64GB | |
| USER ENVIRONMENT | ||
| Operating Temp. | -10℃ to 50℃ | |
| Storage Temp. | -20℃ to 60℃ | |
| Humidity | 95%, no condensation | |
| Drop Specifications | 1.2m drop resistance | |
| IP Protective Level | IP65 certified, MIL-STD-810G certified | |
| DEVELOPMENT ENVIRONMENT | ||
| SDK | Software Development Kit | |
| Language | Java | |
| Environment | Android Studio or Eclipse | |
| DATA COMMUNICATION | ||
| WWAN | Integrated 4G LTE multi-carrier mobile broadband LTE-FDD(B1/2/3/4/5/7/8/13/17/20/28A/28B) LTE-TDD(B38/39/40/41) WCDMA(B1/2/5/8) GSM(B2/3/5/8) | |
| WIFI | Intel® Wi-Fi 5(802.11 ac) | |
| Bluetooth | Bluetooth® V5.0 | |
| GPS | Integrated GPS, Beidou and Glonass module | |
| DATA CAPTUER | ||
| Barcode Scanning | Zebra SE4710Optical resolution: 5milscan speed: 50 times /sCode system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse | |
| RFID HF(NFC) | NFC 13.56MHz support ISO/IEC under 14443A/14443B/15693/18092/mifare protocols | |
| ACCESSORIES | ||
| Standard | 1xHand-strap, 1xThree-in-one Adaptor | |
| Optional | Car mount, Replace Spare Battery, Leather protective case, Scan Pistol Grip, Docking Charger | |

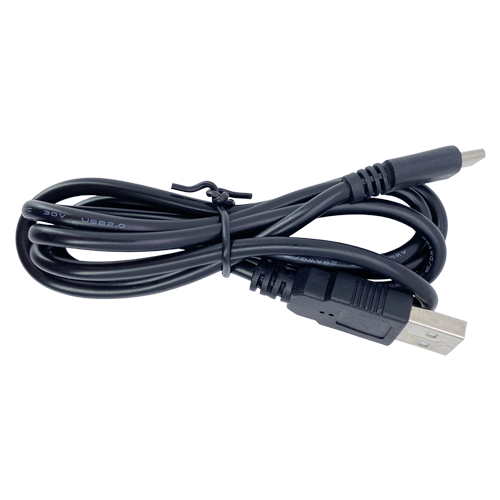

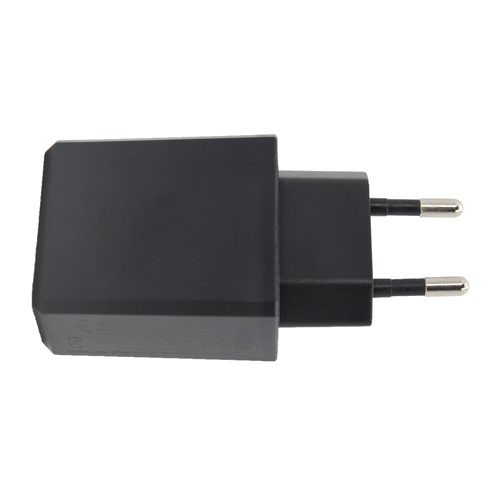

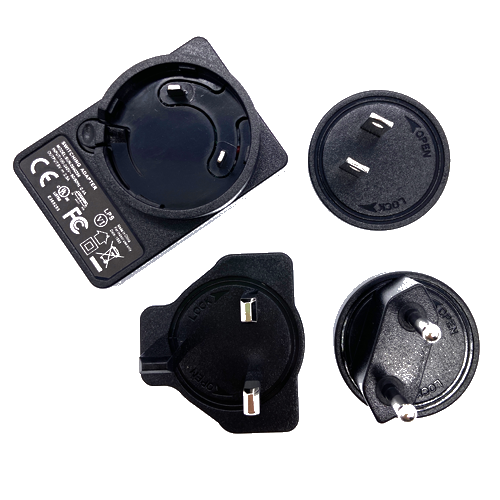

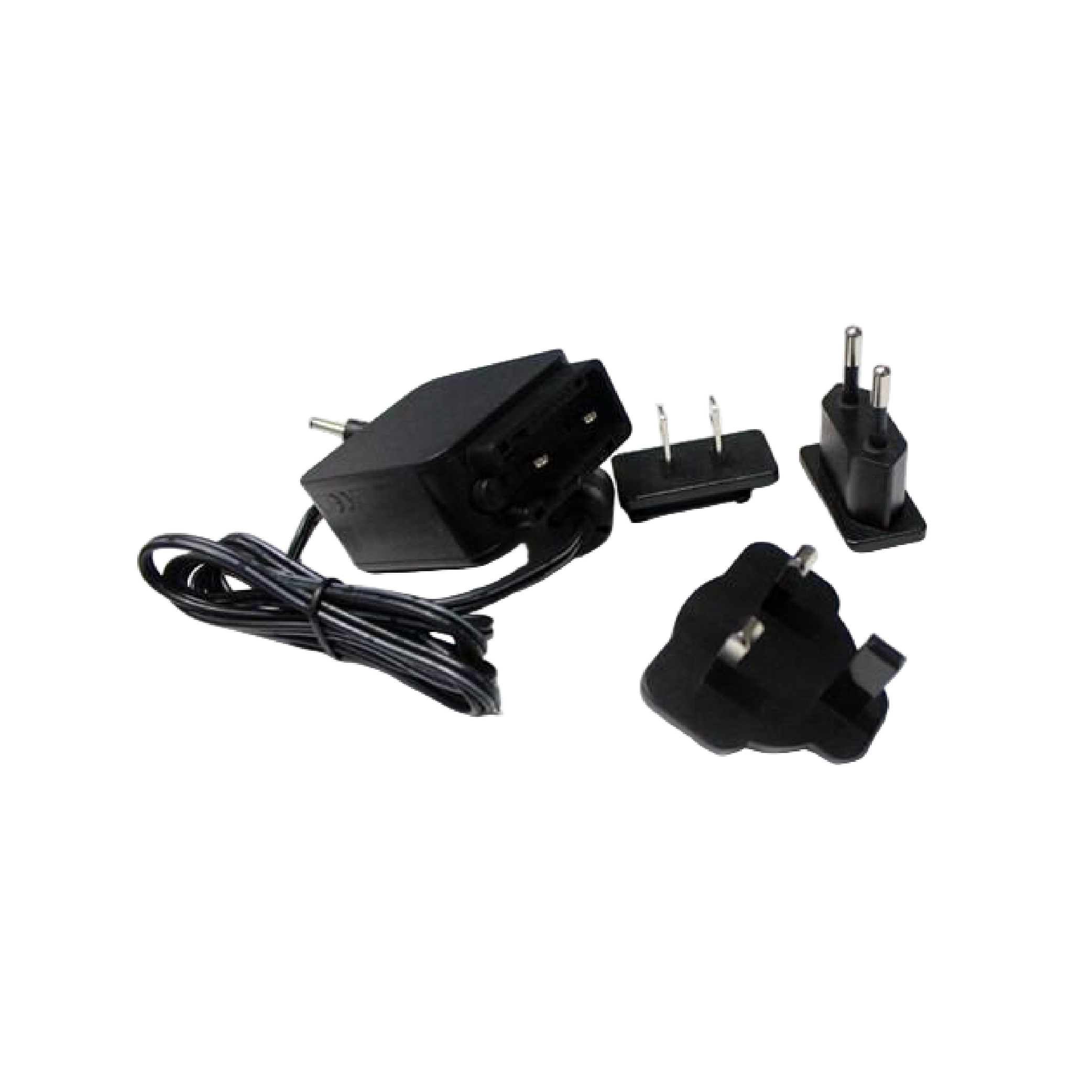

Standard Adaptor

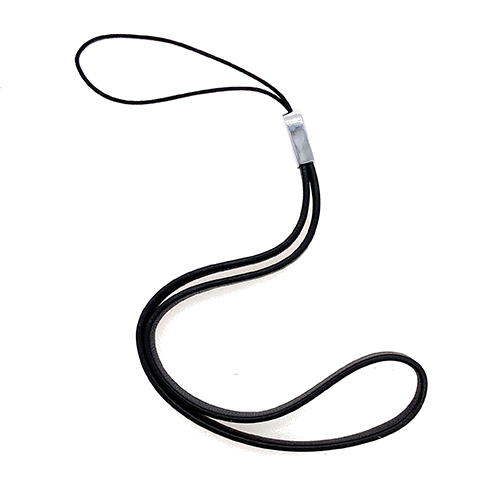

Hand-strap

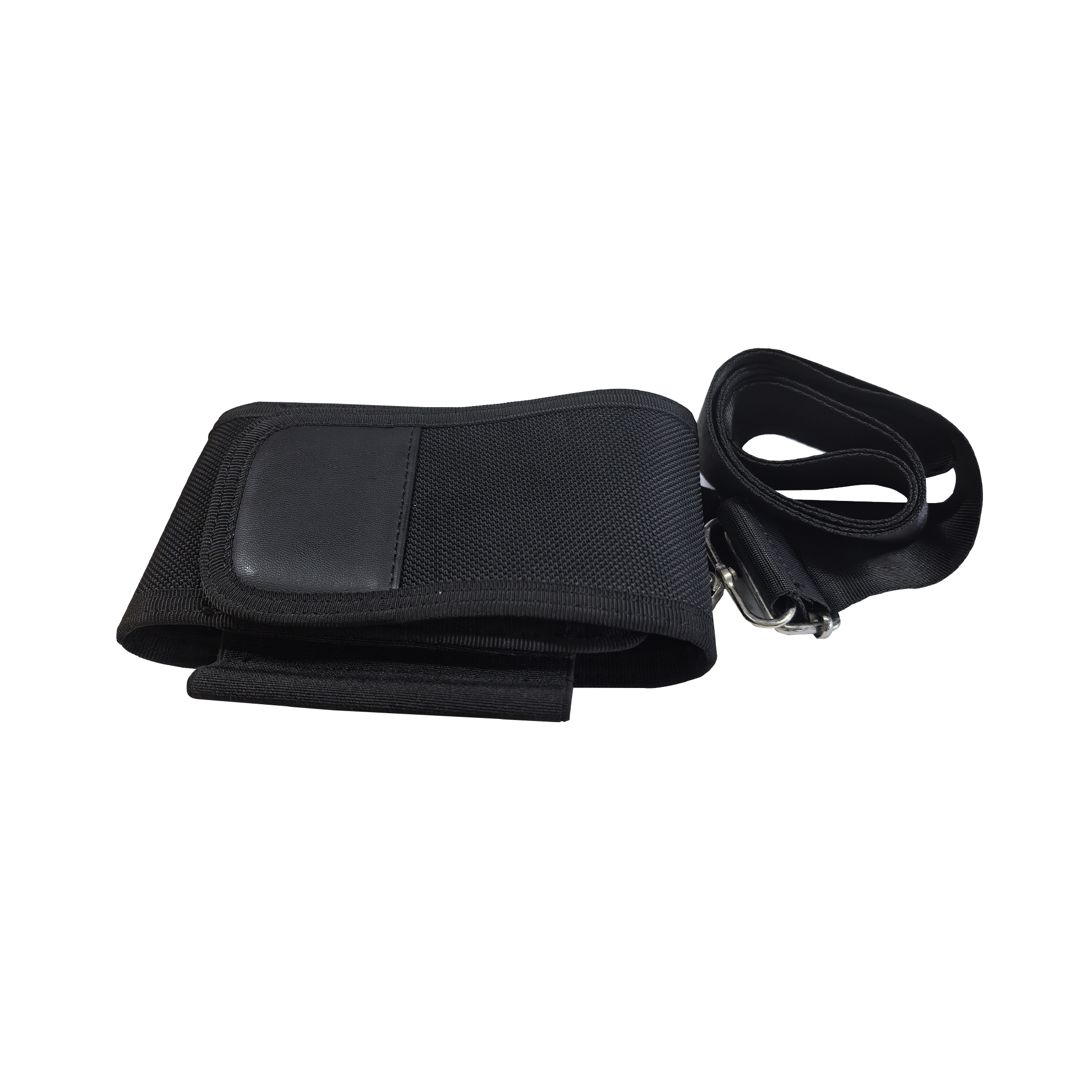

Leather protective case

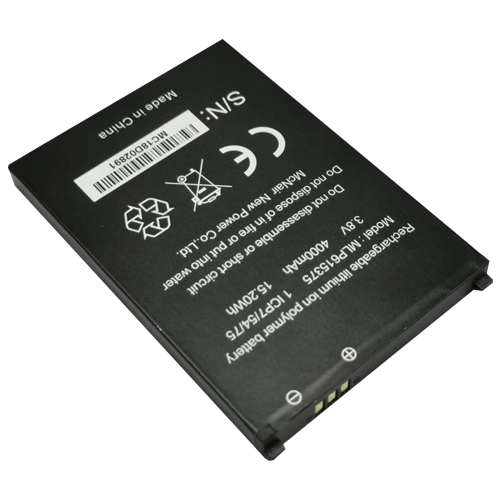

Spare Battery

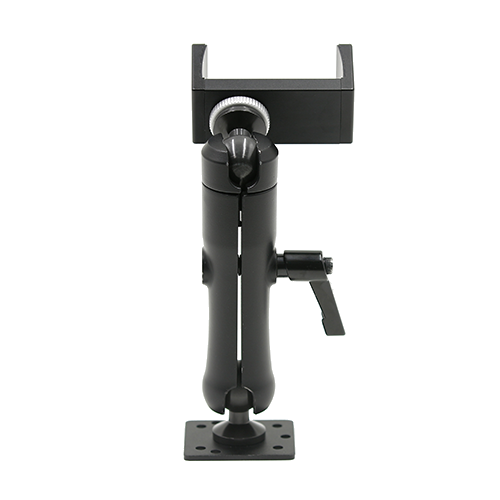

Vehicle Mount

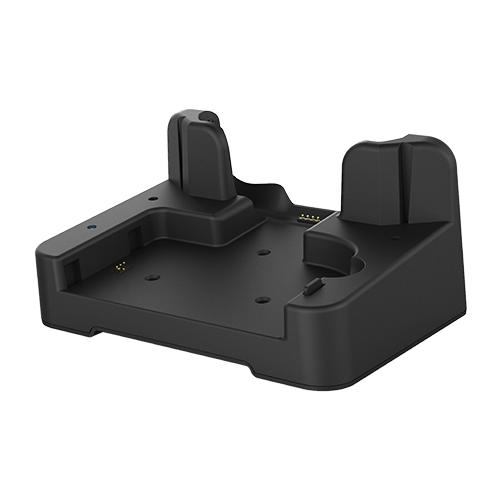

Docking Charger

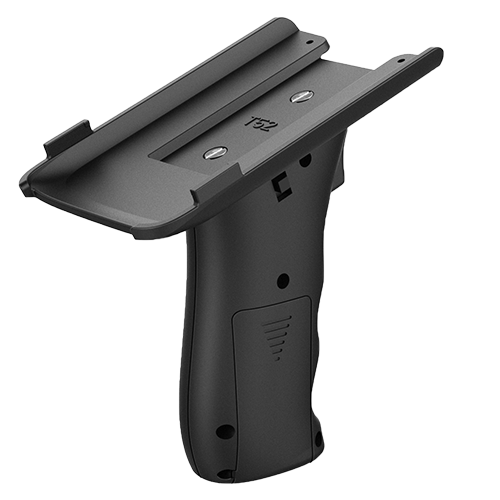

Scan Pistol Grip
