| SPECIFICATIONS |
| PHYSICAL CHARACTERISTICS |

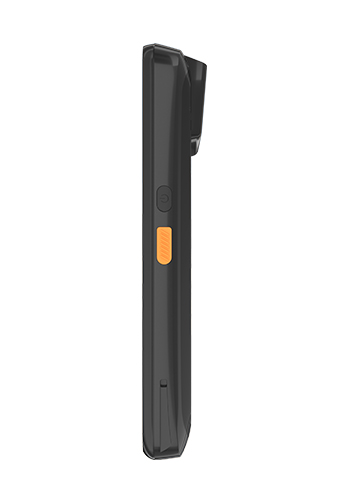

| Dimension | 157.4*74.6*24.2mm |
| Weight | 260g |
| Display / Touch Panel | Type: IPSSize: 5 inch 16:9Resolution: 720*1280Brightness: 350 Nit5 points Capacitive，G+FF |

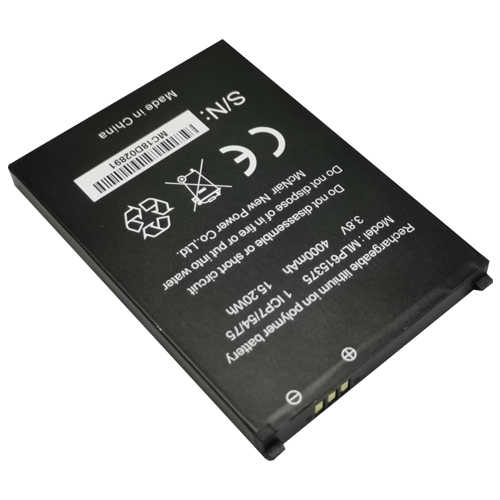

| Battery | Built-in Removable Lithium-ion polymer battery3.8V/4000mAh10.5hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |

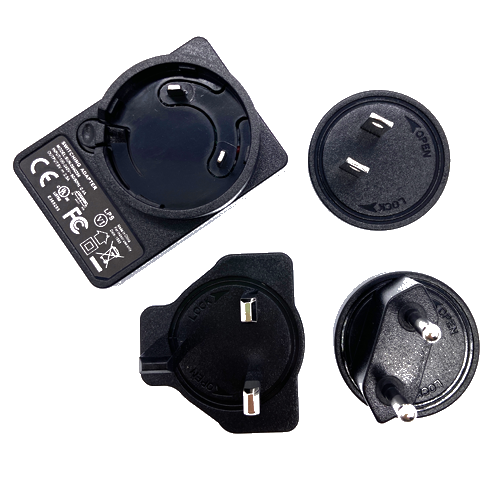

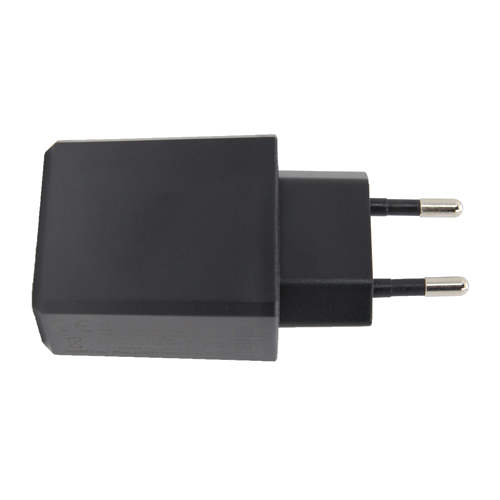

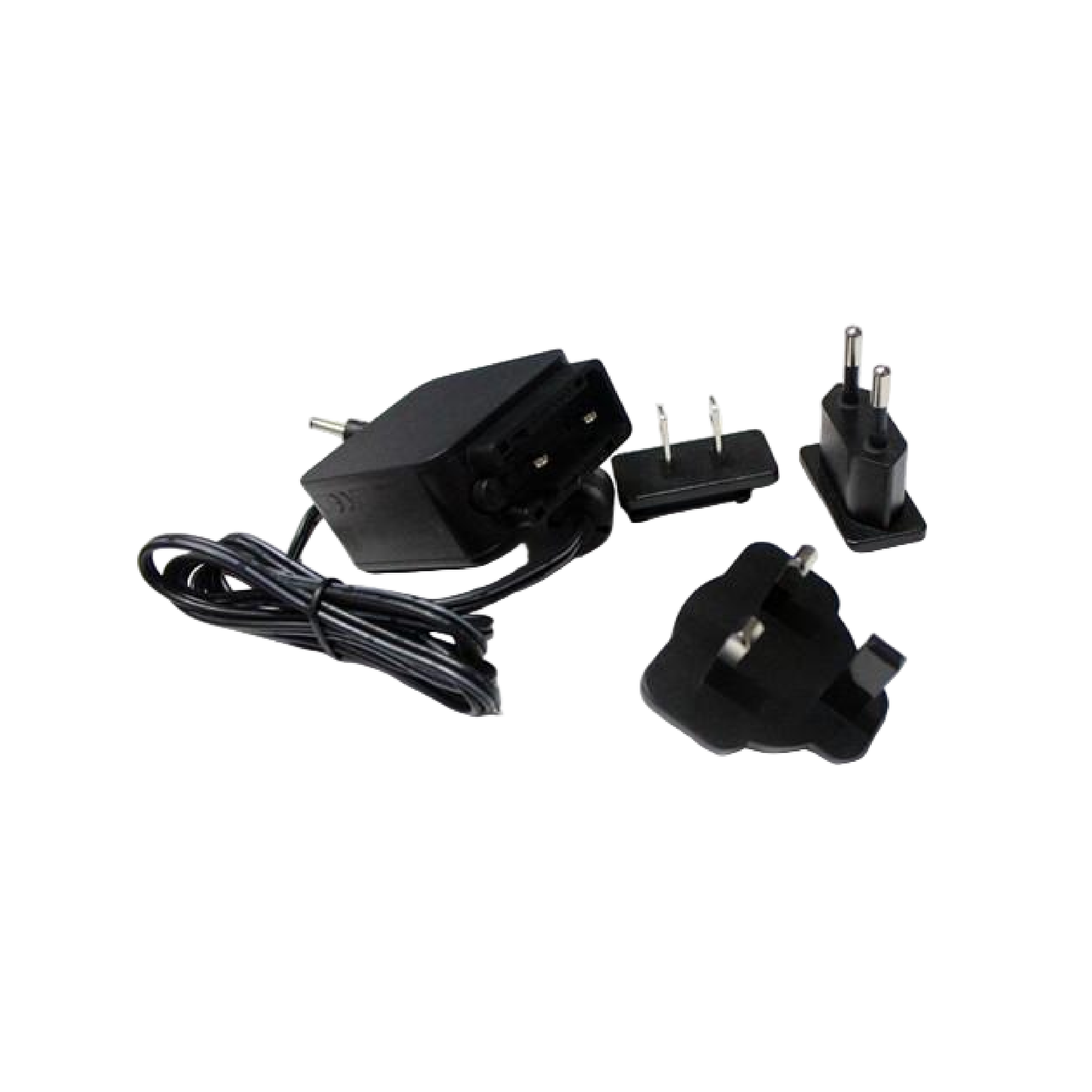

| Power Adapter | EU Standard DC 5V/2AOptional:(EU, US, UK, AU) Choose one of four |
| Audio | Integrated 0.8W speaker x1Integrated microphone x1Integrated receiverClass K |
| I/O Interfaces | Micr usb2.0*1 OTG (Data transmission)∮3.5mm standard earphone jack x1 (US)SIM card *1TF card *1 (SDHC/SDXC supported), Max: 128GBPogo Pin (Base Charge) *1 |
| Buttons | Power *1Volume Adjustment Key (+) *1Volume Adjustment Key (-) *1Home Key *1Bar code scanning (left and right)*2Menu*1Back*1Custom*2 |
| Camera | Front 5MPRear 13.0MP, automatic focusing with astigmatism，PDAF support |
| PERFORMANCE CHARACTERSTICS |
| CPU | MTK6765 （8core）4*A53 2.0GHz4*A53 1.5GHz |
| Operating System | Android 15/GMS |
| Storage | RAM LPDDR4X up to 4GB(dual channels with 16-bit data bus width) ROM 64GB EMMC |
| USER ENVIRONMENT |
| Operating Temp. | -10℃ to 50℃ |
| Storage Temp. | -20℃ to 60℃ |
| Humidity | 95% Non-Condensing |
| Drop Specifications | 1.2m Composite wood floor working |
| IP Protective Level | IP65IP65 Report： Water resistance：IP-X5，Dust resistance：IP-6X Report ID no.：SET2015-07677a.Inner Nozzle diameter：6.3mm； b. water speed：12.5±0.625L/min；c. Water Pressure：adjust according to water volumn；d.Central part of water volumne.Spray time in surface of panel：about 1min；f.test time：at least 3min；g.distance between nozzle and panel surface：2.5～3m。After test，there is no water leakage in sample. |
| DEVELOPMENT ENVIRONMENT |
| SDK | Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| DATA COMMUNICATION |
| WWAN | 4G: GSM(B2/3/5/8)+WCDMA(B1/B2/5/8)+TDS(B34/B39)+FDD(B1/2/3/4/5/7/8/13/17/20/28AB)+TDD(B38/39/40/41) |
| WIFI | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5G dual band WIFI,Support AP seamless roaming |
| Bluetooth | BT5.0(BLE) |
| GPS | Support GPS、Glonass、beidou |
| DATA CAPTUER |
| Barcode Scanning | Engine Zebra SE4710Optical resolution: 5milscan speed: 50 times /sCode system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
| RFID HF（NFC） | NFC 13.56MHz support ISO/IEC under 14443A/14443B/15693/18092/mifare protocols |
| ACCESSORIES |

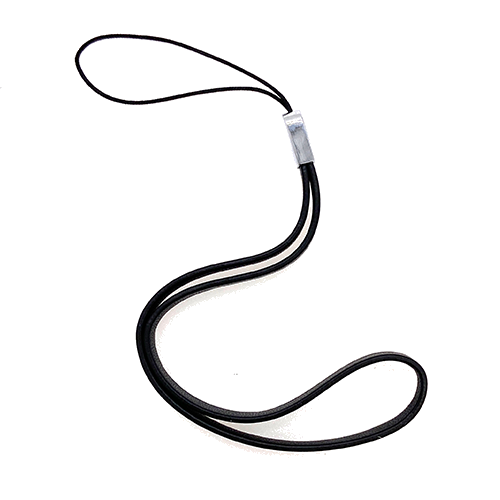

| Standard | 1xHand-strap,1xThree-in-one Adaptor |

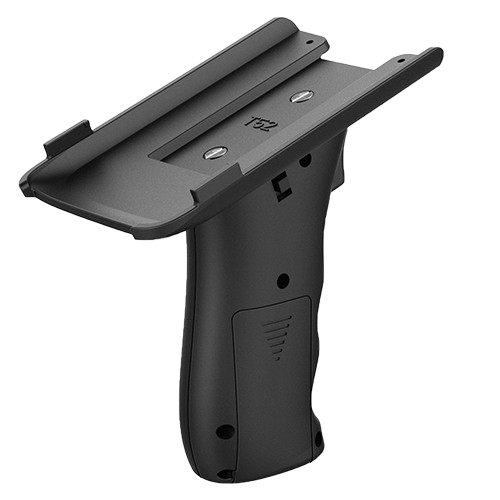

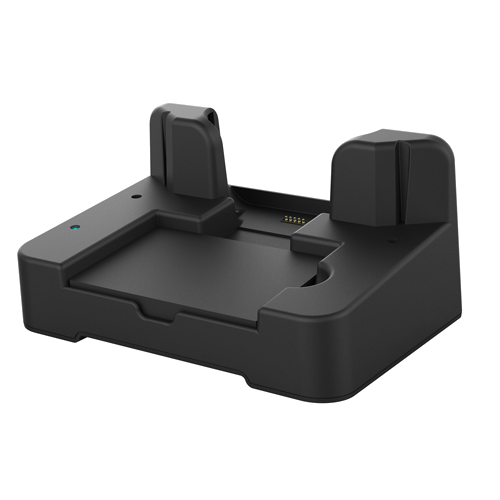

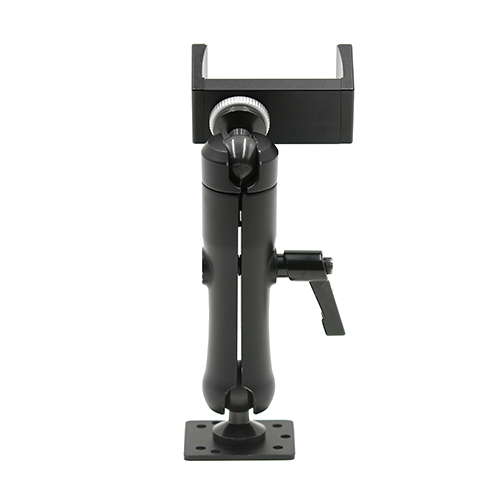

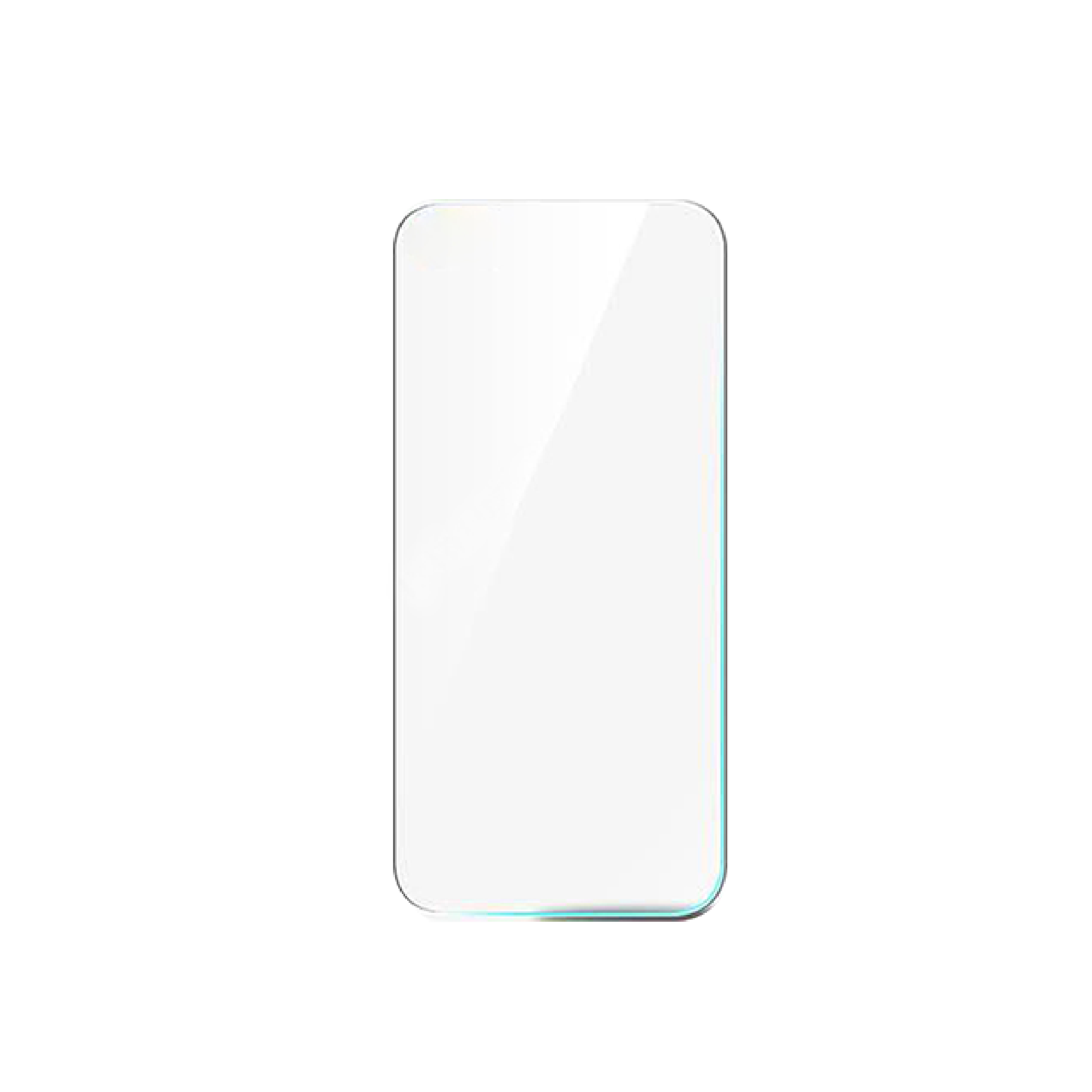

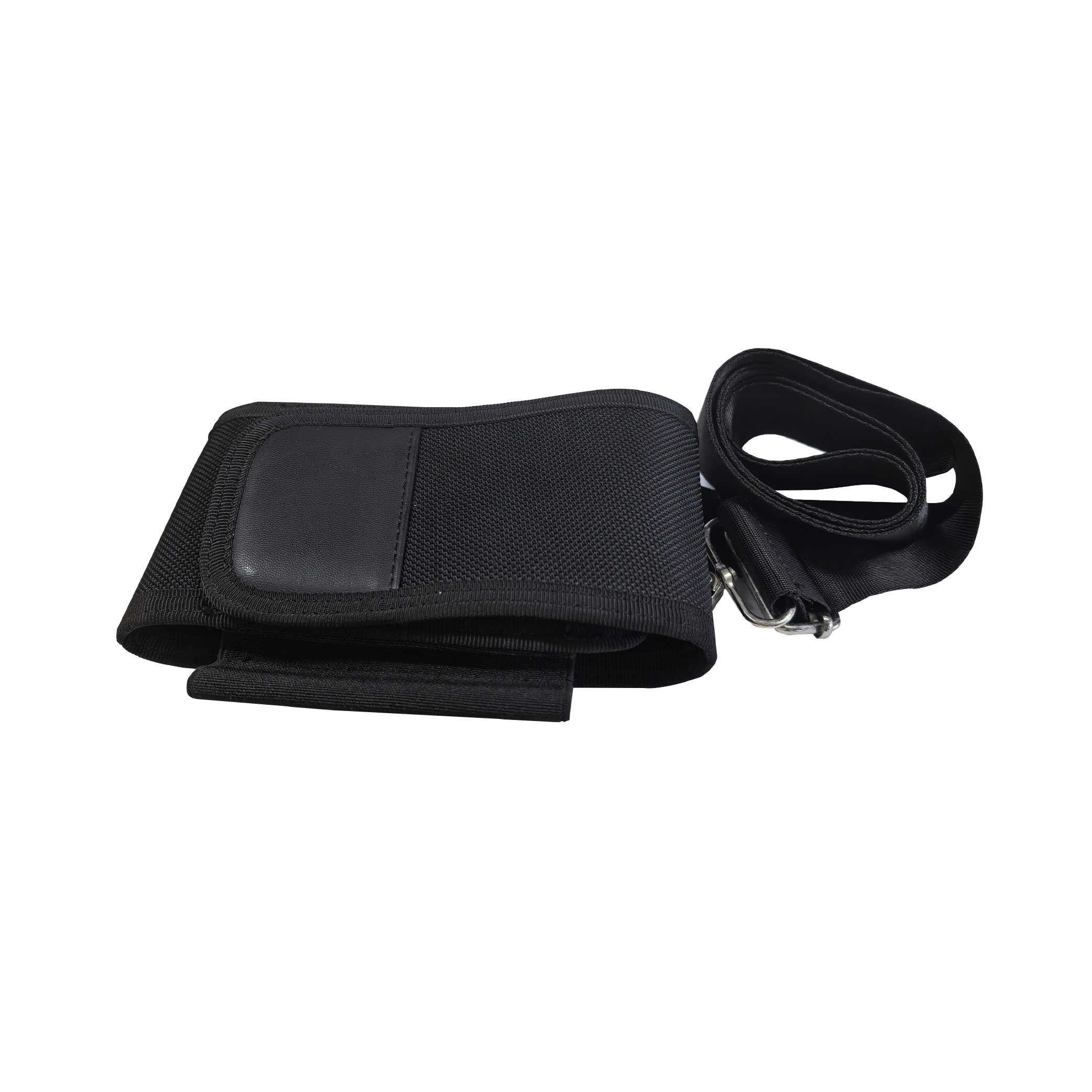

| Optional | Car mount,TP protective film,Spare extra Battery,Leather protective case,Scan Pistol Grip,Docking Charger |
