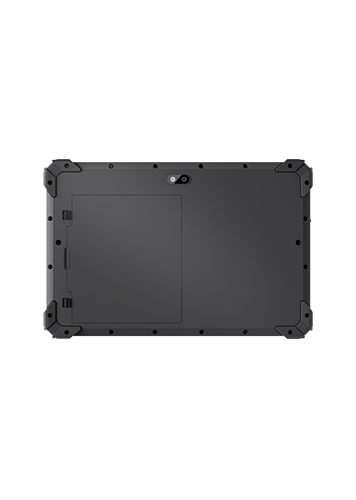

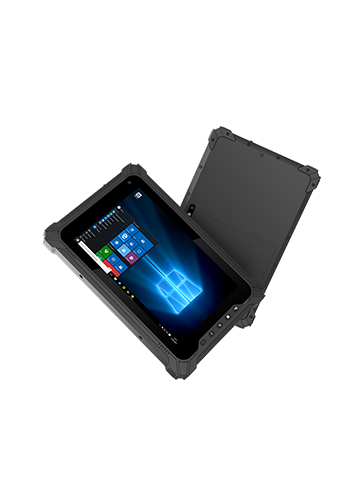

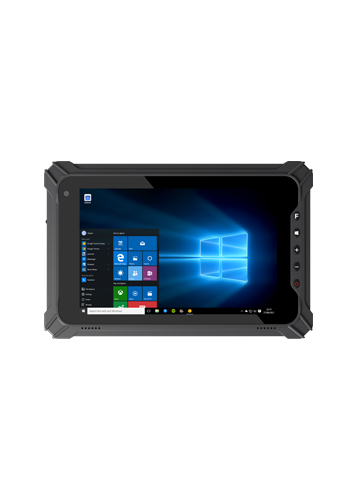

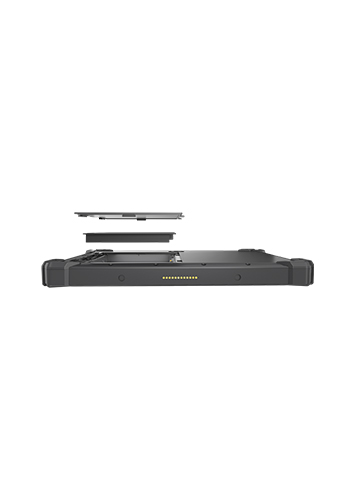

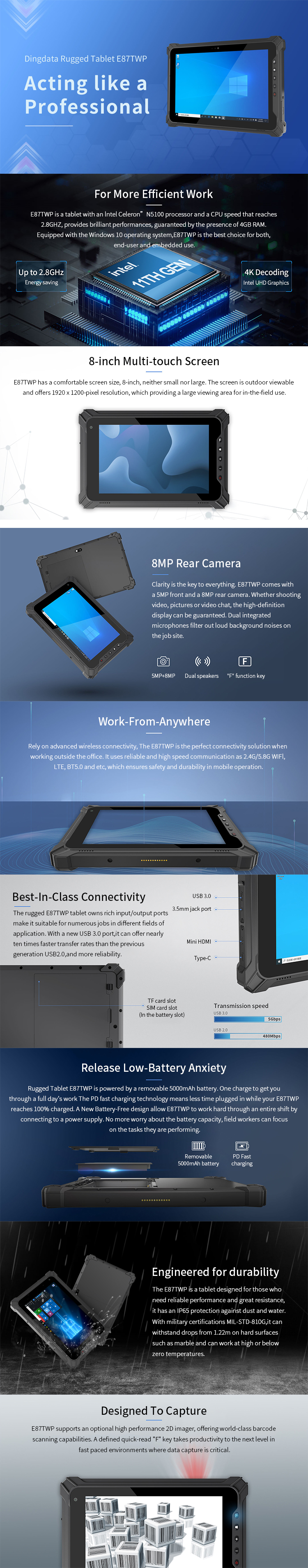

8 inch Industrial Rugged Tablet

Full-Features to Deliver the Best Service

E87TWP support for Windows 10/11 system,Intel Jasper Lake processor Celeron N5100 CPU, it built-in 10000mAh battery, 10 hours of machine endurance. It up to IP65 Waterproof and Dustproof Level, MIL-STD-810G certified. At the same time, support GPS, Glonass, more accurate positioning and 1D/2D, NFC and other functional modules for free selection. Support aviation plug to meet the requirements of industrial electricity. Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes.

E87TWP
E87TWP
E87TWP
E87TWP
  • Features
  • Specification
  • Accessories
  • Download



ModelE87TWP
Dimension236.7*155.7*20mm
OSWindows 10 Pro/Iot (Optional Win 11)
CPUIntel Jasper Lake processor Celeron N5100
WeightDevice unit: 910 ,Unit with giftbox and standard accessories:g
Display8 inch IPS 16:10 (5 points Toughened glass capacitor screen,G+F+F,Rigidity: above 7H-Anti-scratch)
Memory8GB RAM+ 128GB ROM
Battery Capacity7.6V/5000mAh Removable polymer li-ion battery
Resolution1920*1200 IPS LCD,550 Nit
Interface Configuration1.USB 3.0 Type-A x 1, USB Type-C x 1, 2.SIM Card, TF Card (Three in one card holder), 3.HDMI 1.4a x 1, 4.12pins Pogo Pin x 1, 5.Φ3.5mm standard earphone jack x 1
Micro SD cardExtended external storage x1,up to 512GB
SIMNano-SIM x 1
1D/2D barcode (Optional)Support N4680 Series 2D Scan Engines
IP ratingIP675
Drop Resistance1.22m Drop, in operation status
CameraFront Camera 5.0M+Rear Camera 13M.0M(Support flash LED)
3G/4G LTE FDD: B1/B3/B7/B8/B20LTE-TDD: B40WCDMA: B1/B5/B8GSM: B3/B8
Operate Temperature -20°C  ~ 60 °C
Store Temperature -30°C  ~ 70 °C
NFC/RFIDISO/IEC14443,ISO/IEC15693,MIFARE,Felica,Read distance:3-5cm,Front
Wifi802.11a/b/g/n/ac, Wireless AP ( Mobile AP )2.4G, 5G
BluetoothBT5.1 (BLE)
GPSSupport Beidou+GPS+glonass;Capture sensitivity:-163 dBm;Cold start:35seconds,Hot start:1seconds
Certification standardsMilitary 810G, EU CE, US FCC

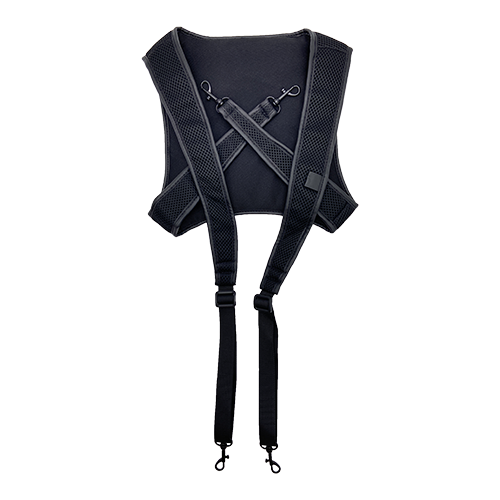

AccessoriesStandard include Power adaper with USB Cable,Hand strap, optional Docking Charger,Car Holder,Back strap,Spare Battery,Car Charger,etc..
Standard_Accessories

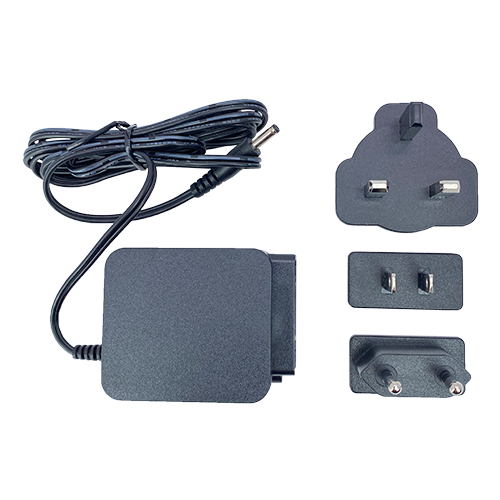

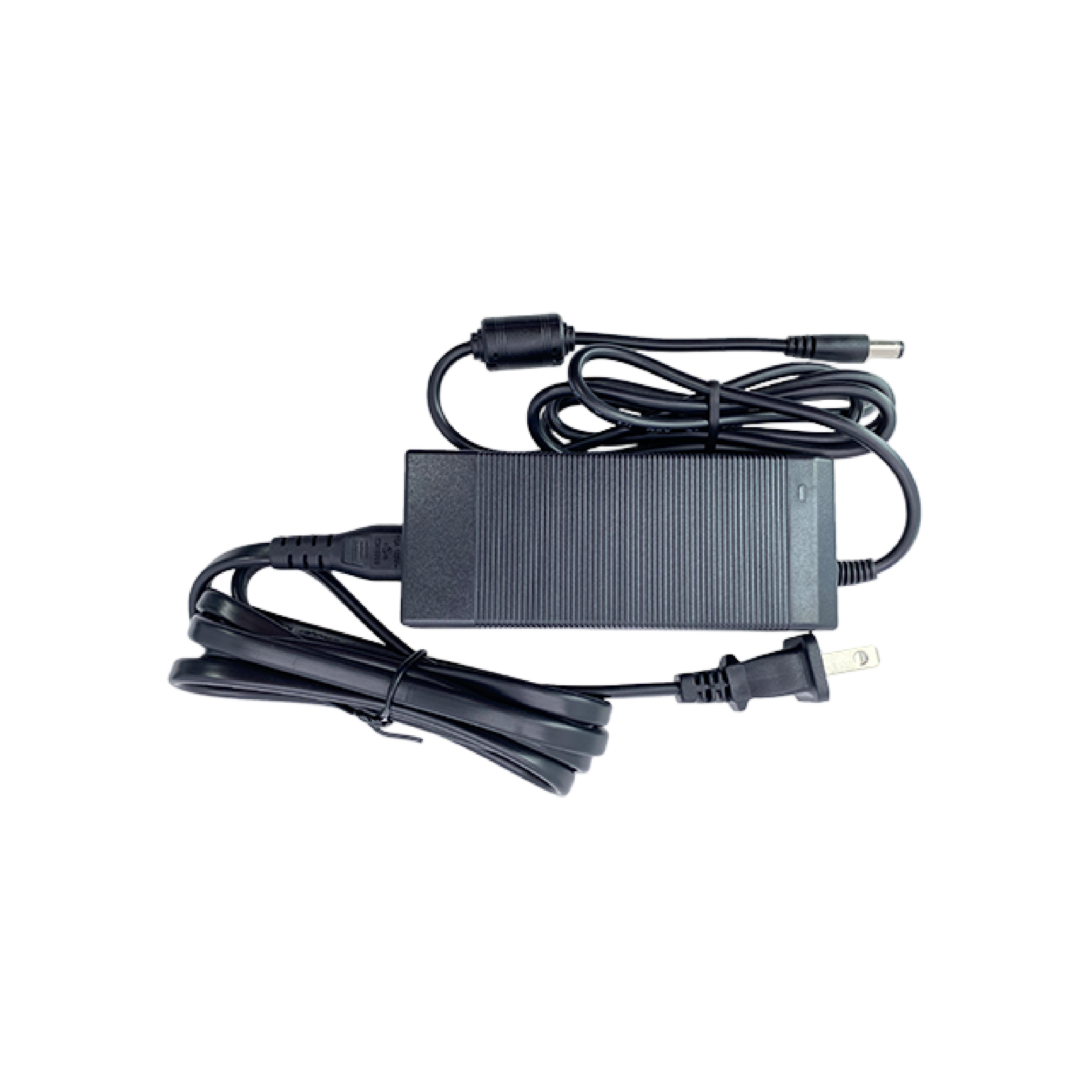

Standard Adaptor

Standard Adaptor

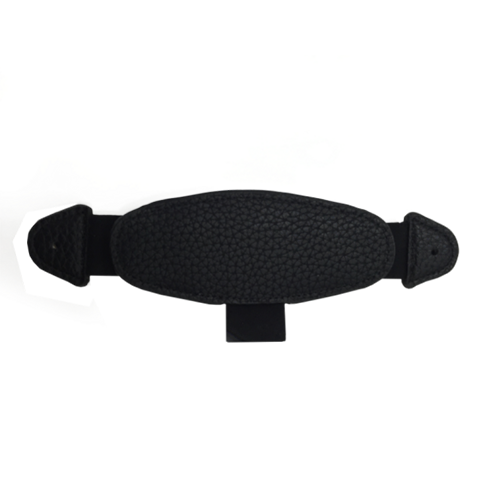

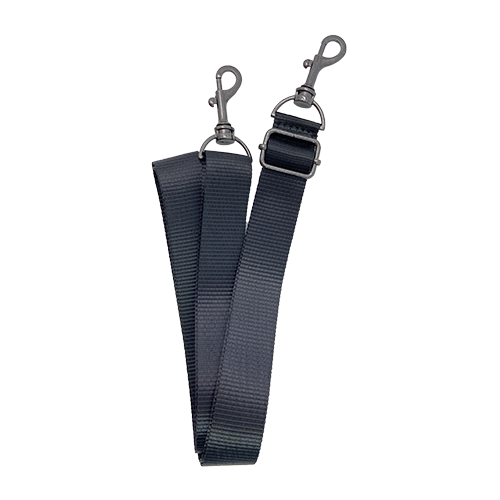

Hand-strap4

Hand-strap4


Optional_Accessories

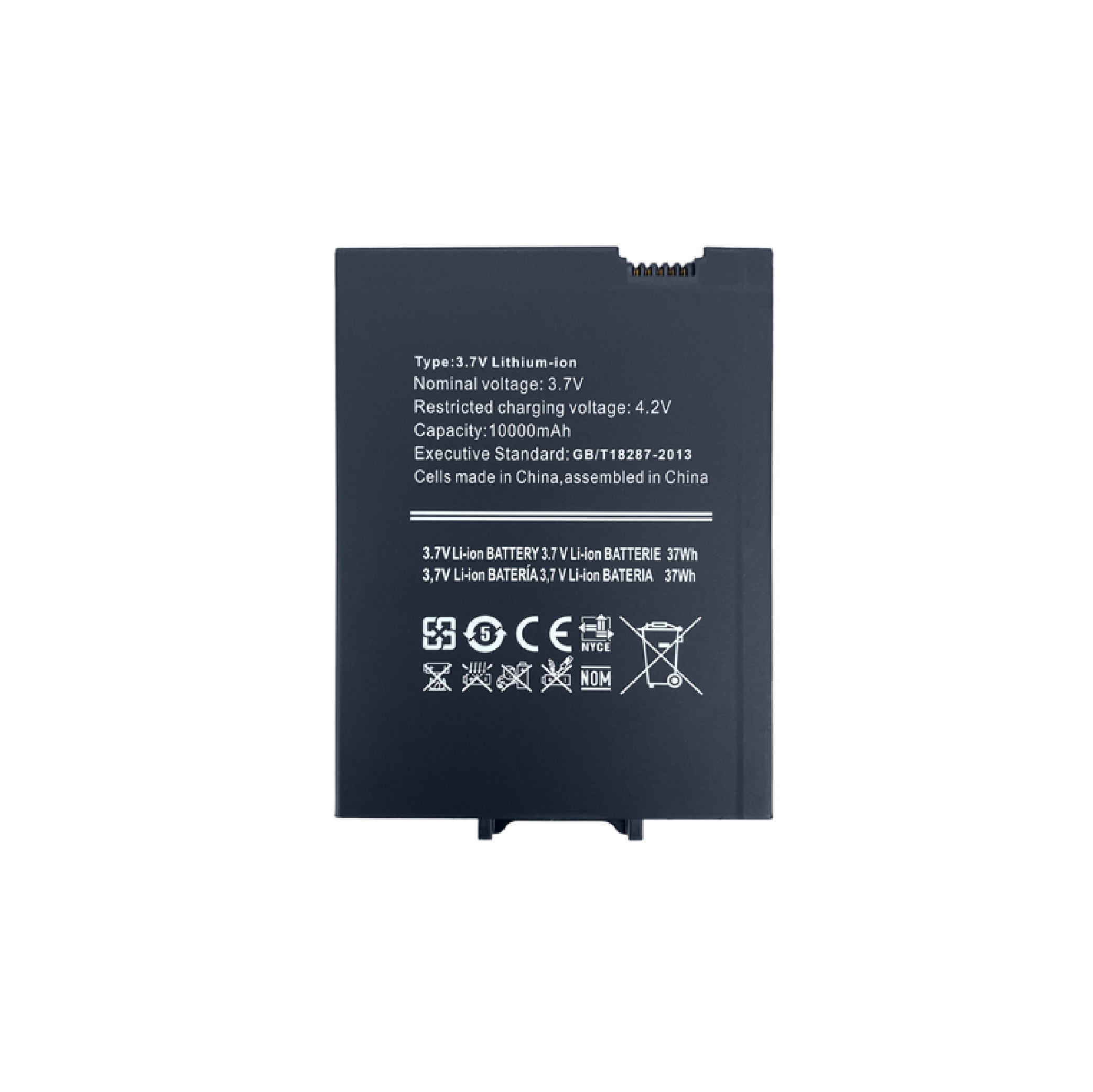

Spare Replace Battery

Spare Replace Battery

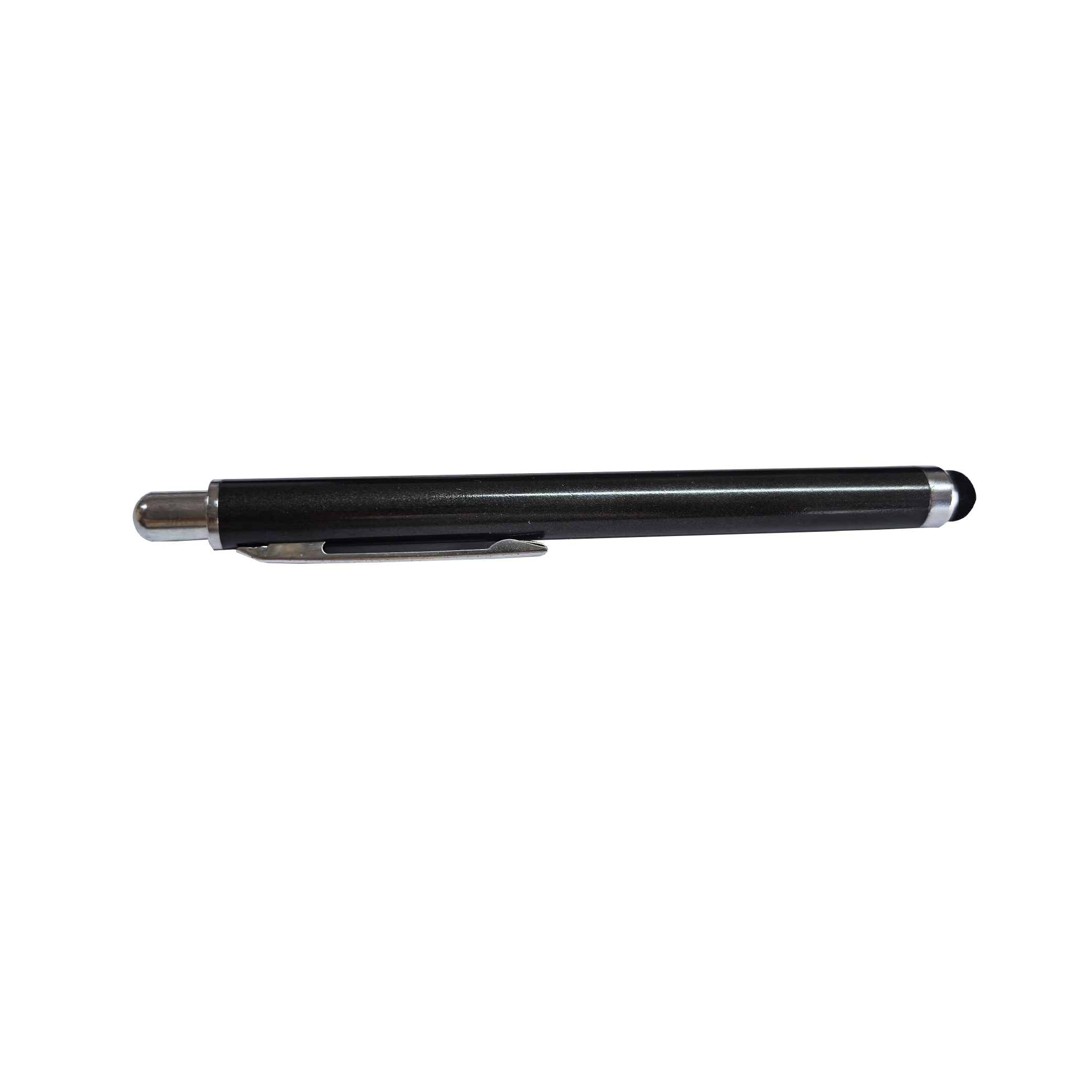

Hand writing pen

Hand writing pen

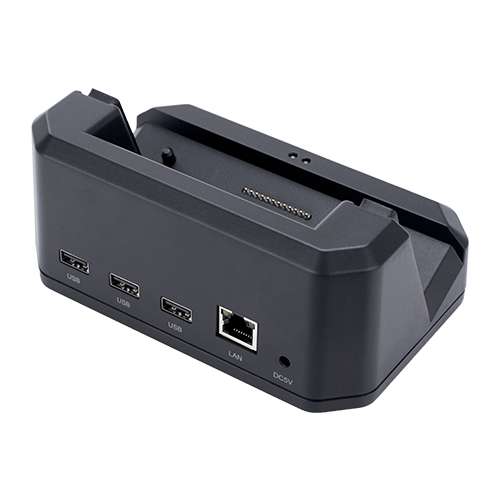

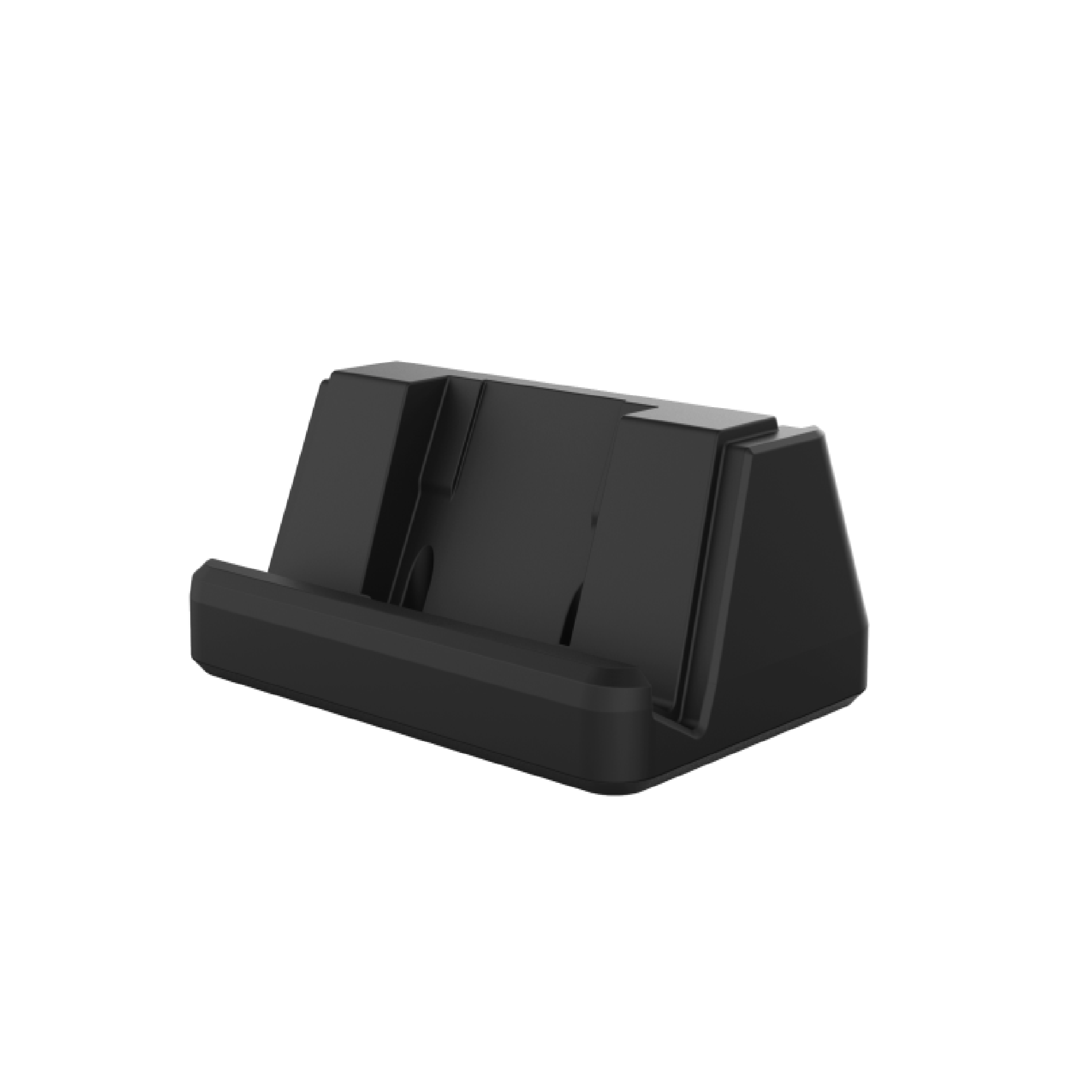

Docking Charging

Docking Charging

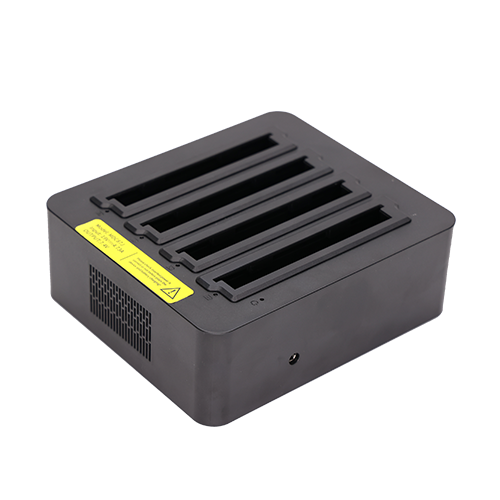

Docking Charger

Docking Charger

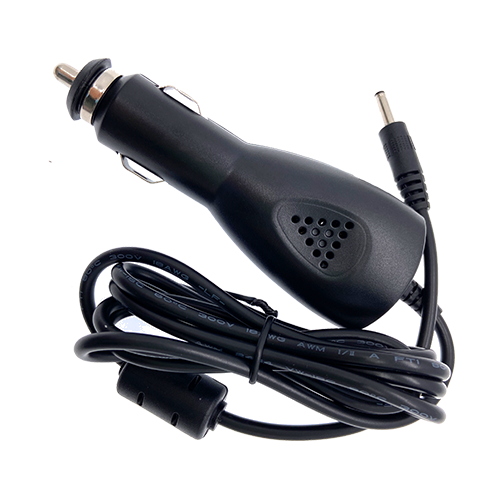

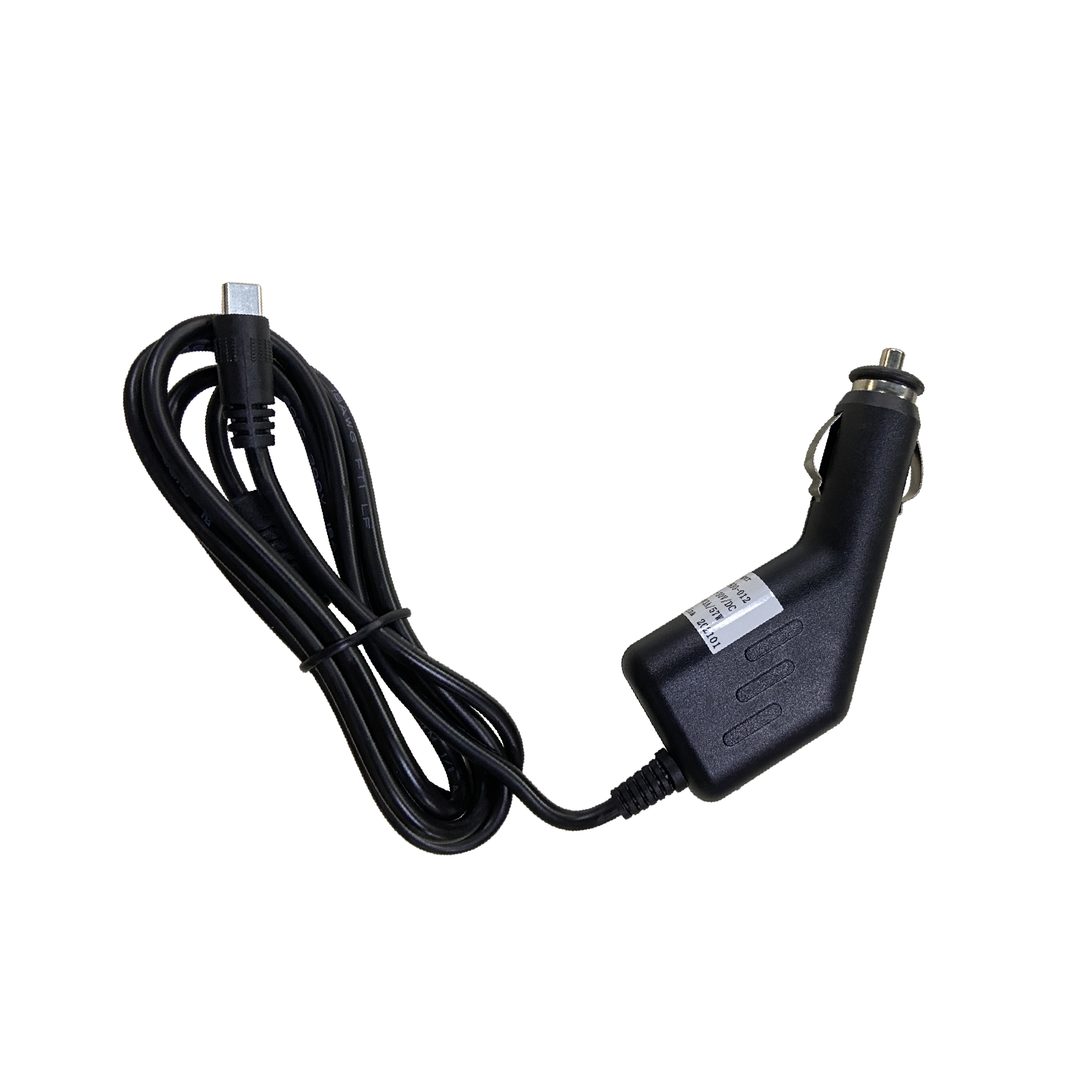

Car charger

Car charger

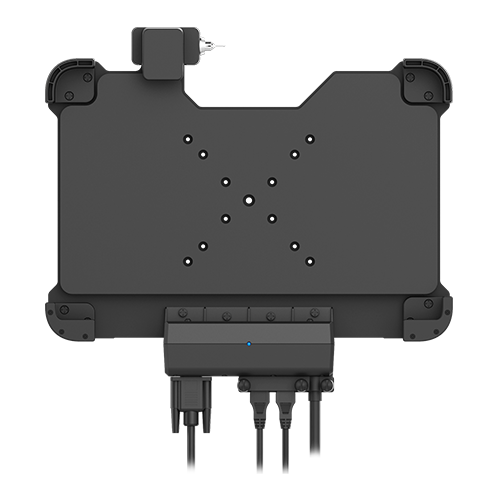

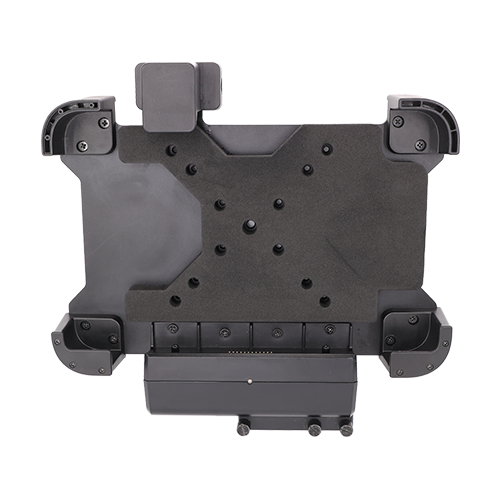

Vehicle Mount

Vehicle Mount

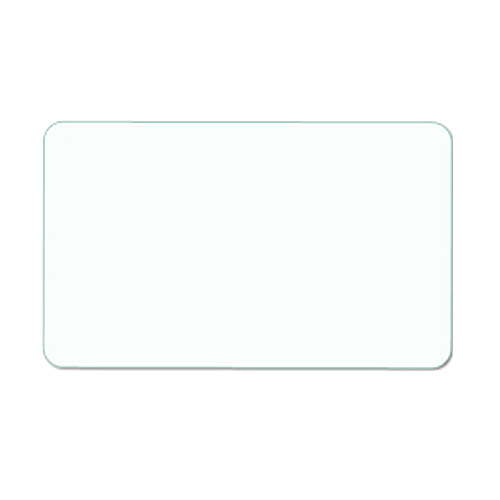

Screen protector

Screen protector
