| SPECIFICATIONS |
| PHYSICAL CHARACTERISTICS |
| Dimension | 319.6*216*24.3 mm |
| Weight | 1500g |
| Display / Touch Panel | Type: IPSSize: 12.2 inch 16:10Resolution: 1920*1200Brightness: 650cd/㎡10 point capacitive screen, G+G, Corning gorilla hardness above 7H, scratch resistant, COF, support GP930 stylus |
| Battery | Removable Li-polyment Battery3.7V/12600mAh7hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| Power Adapter | AC100V~240V, 50Hz/60Hz Output DC 5V/4A has passed CE certificationOptional:(EU, US, UK, AU) Choose one of four |
| Speaker | 8Ω/1W Waterproof BOX Speaker *2 |
| I/O Interfaces | USB 2.0 *2 (4pin),USB 3.0 *1 (9pin)Type C *1 (Data & Charing)∮3.5mm standard earphone jack *1TF Card *1 max：256GSIM Card *1DC 5V/4A ∮3.5mm Power connector *1HDMI *1DB9 (RS232) *1, DB9 (RS485) *1RJ45 (10/100Mbps) *112PIN Pogo Pin *1 |
| Buttons | Power *1Volume Adjustment Key (+) *1Volume Adjustment Key (-) *1P1 Key *1 (HOME key)P2 Key *1 (BACK key)F Key *1 (Barcode scanner) (Back of machine) |
| Camera | Front 5.0MPRear 13.0MP |
| PERFORMANCE CHARACTERSTICS |
| CPU | Qualcomm SM6350 2.0GHZ |
| Operating System | Andriod 11/GMS |
| Storage | RAM 8GB DDR3L ROM 128GB EMMC |
| USER ENVIRONMENT |
| Operating Temp. | -20℃ to 60℃ |
| Storage Temp. | -30℃ to 70℃ |
| Humidity | 95% Non-Condensing |
| Drop Specifications | MIL-STD-810G: 1.22m drop |
| IP Protective Level | IP65, CE NB,FCC,RoHS,MIL-STD-810G,Battery: UN38.3, MSDS, Aviation report, Marine report, IEC62133 |
| DEVELOPMENT ENVIRONMENT |
| SDK | Dingdata Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| DATA COMMUNICATION |
| WWAN | 3G: WCDMA: B1/5/84G: TDD-LTE: B34/38/39/40/41FDD-LTE: B1/3/5/85G: NR: N1/28/41/78/79 |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5G |
| Bluetooth | BT5.1 (BLE) |
| GPS | Sleeve support: GPS+Glonass; capture sensitivity: -140 dBm; cold start time:
Standard-Accessories

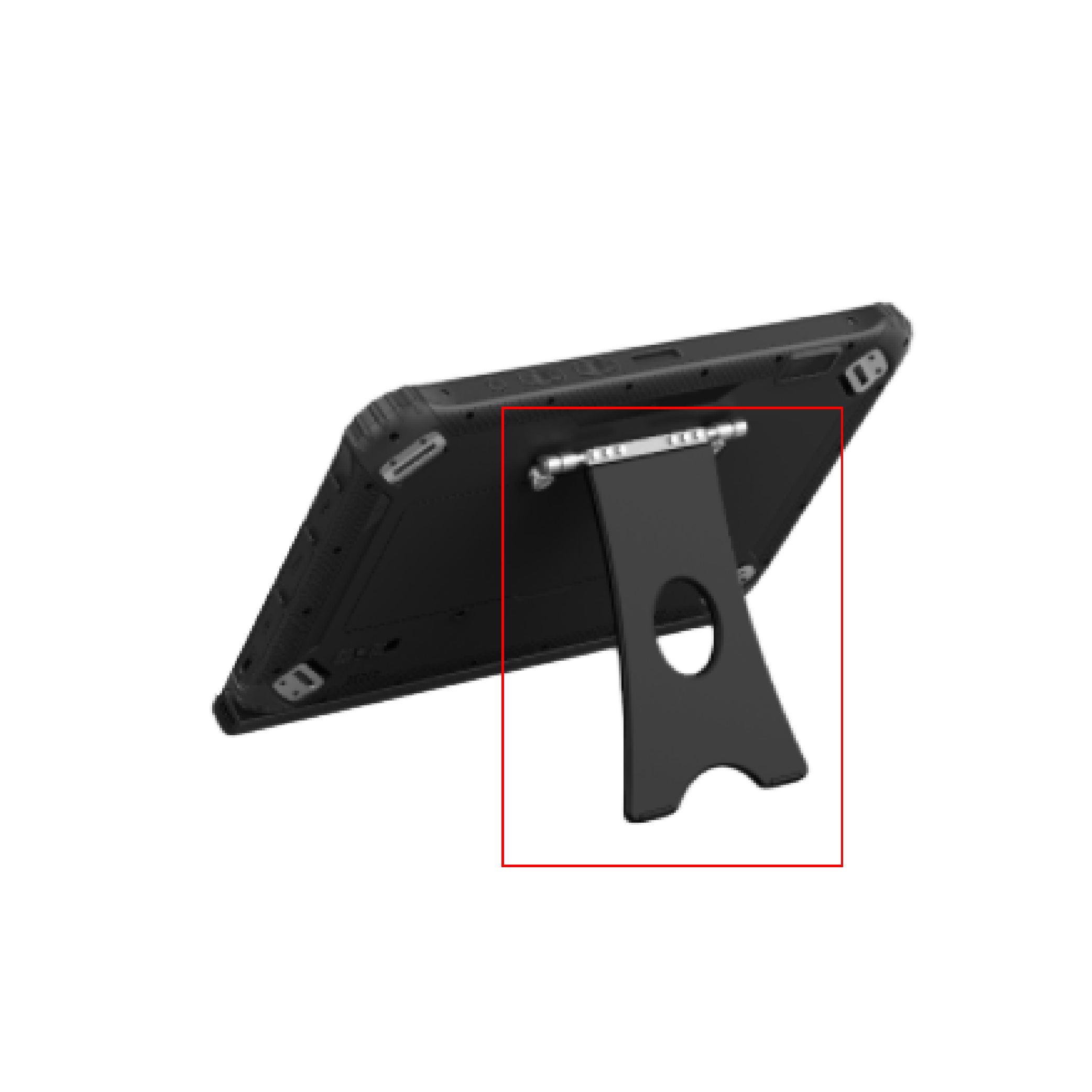

Holder Bracket

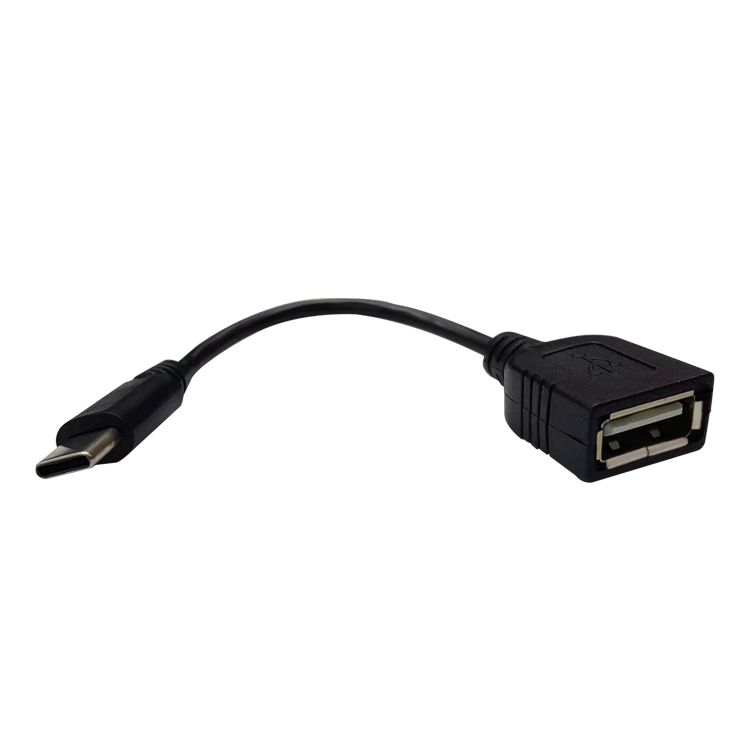

OTG Cable

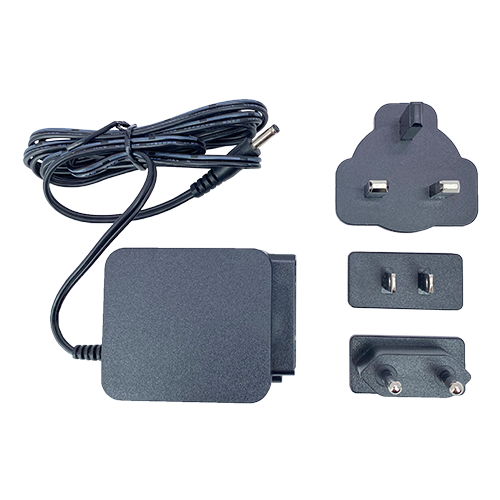

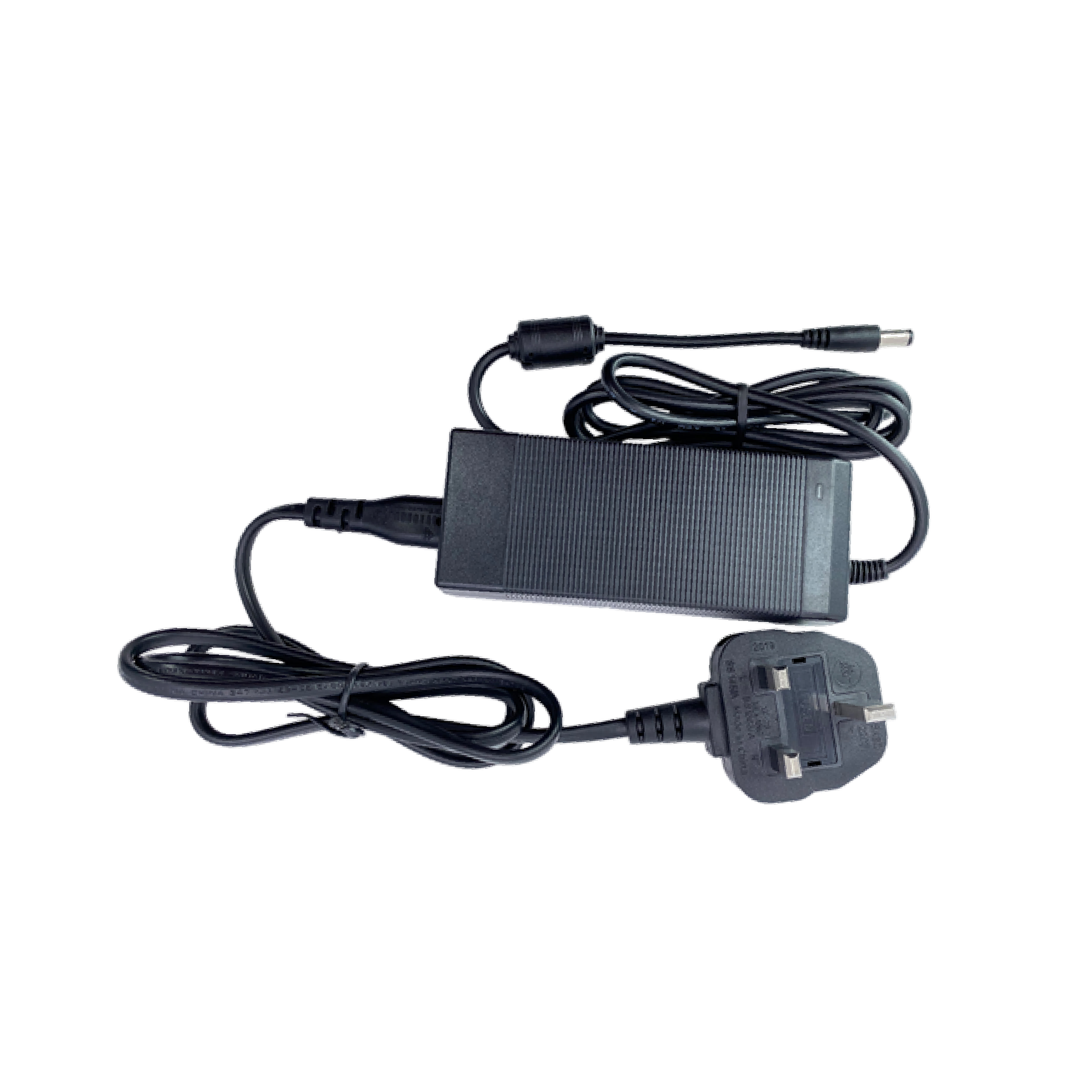

Standard Adaptor
Hand-strap

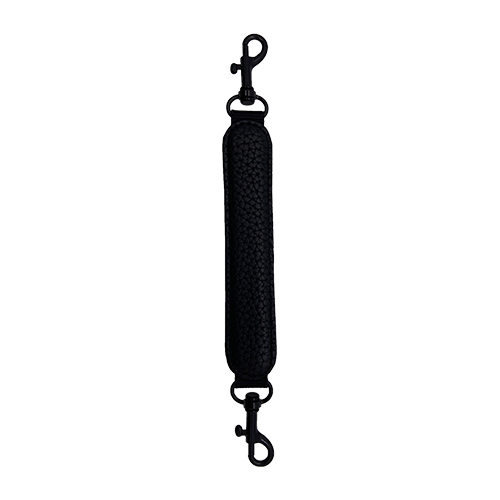

Carry handle
Optional-Accessories

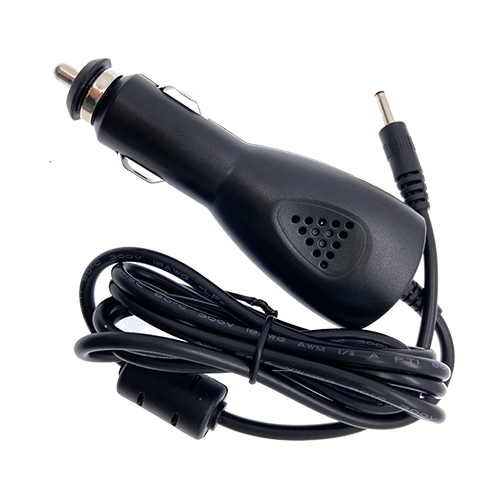

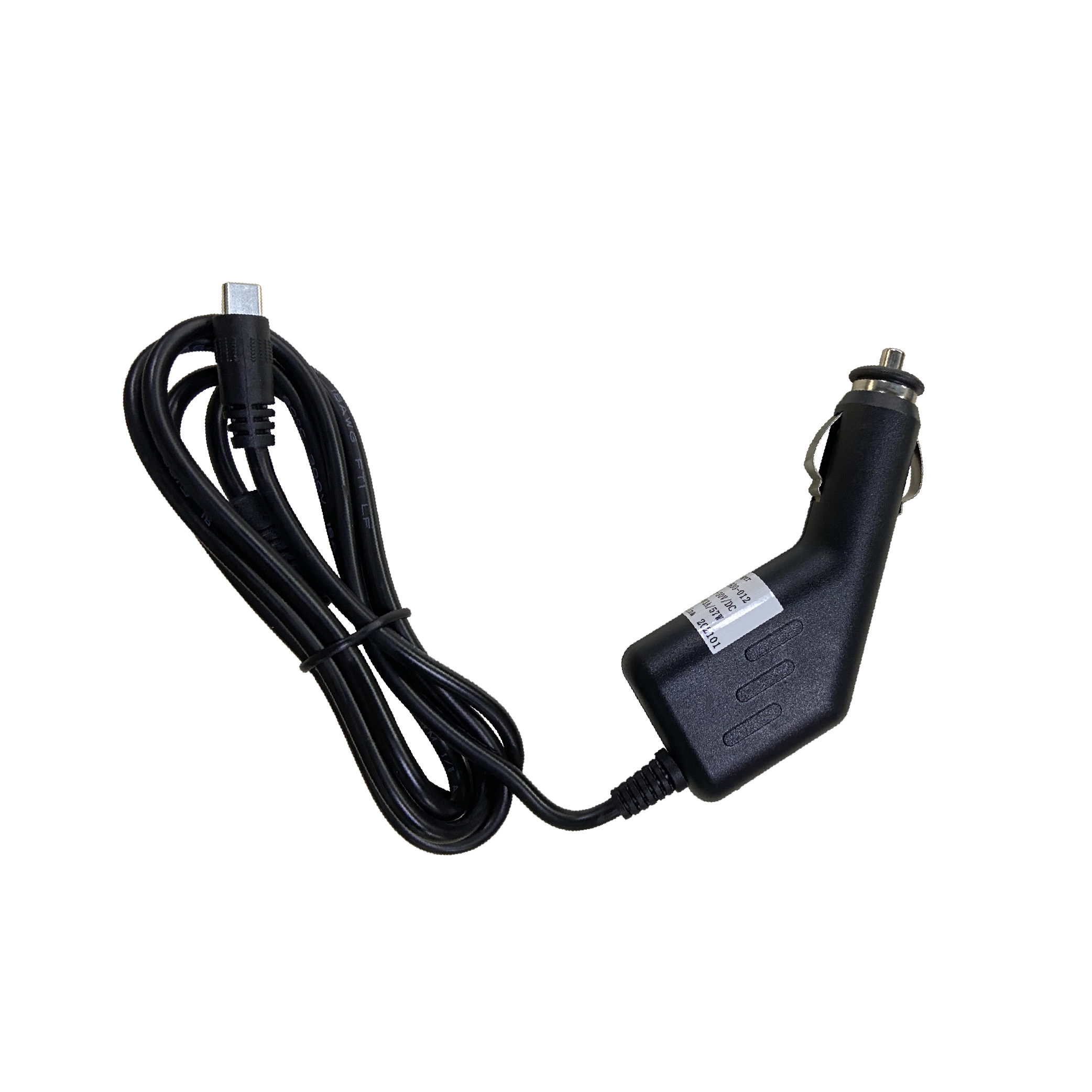

Car charger

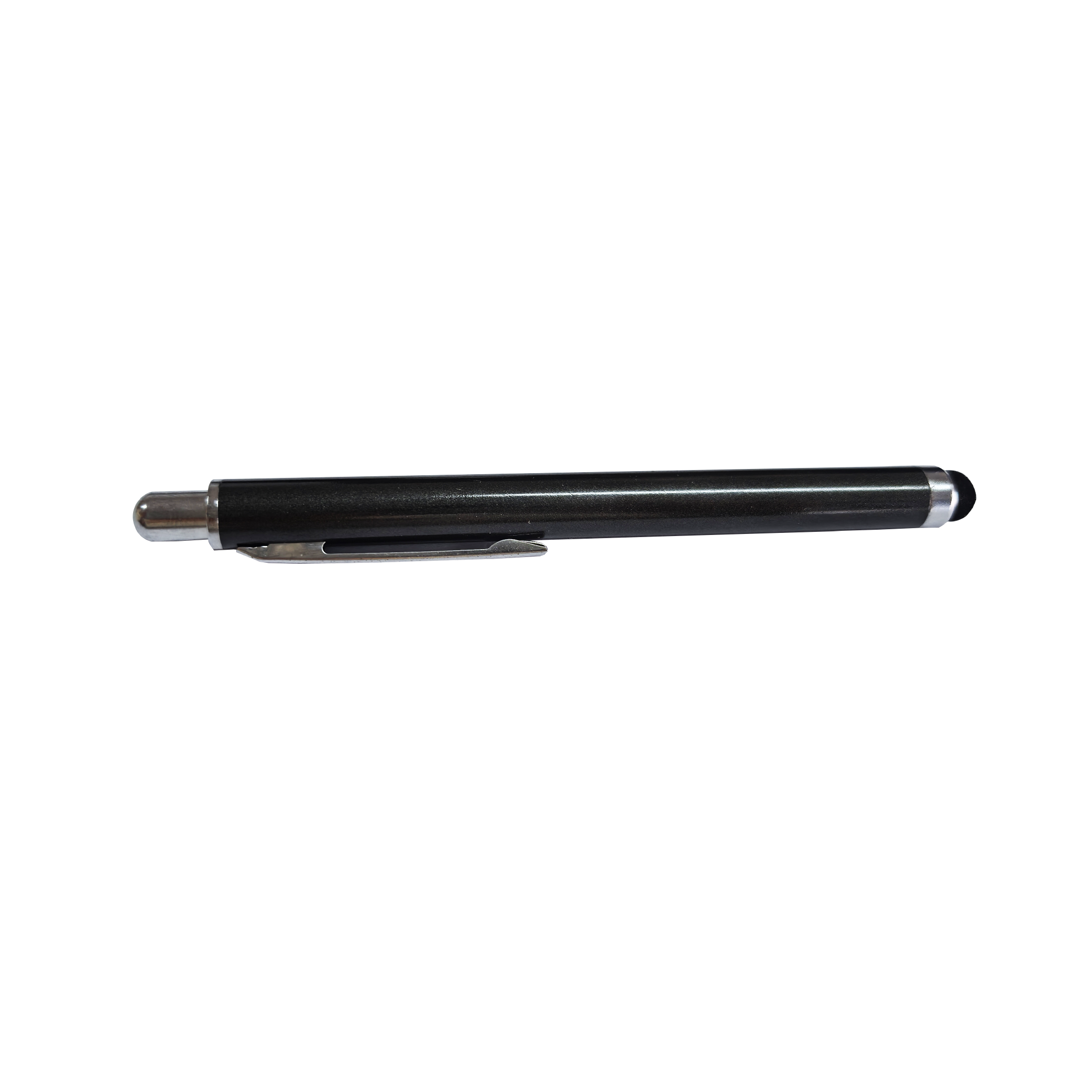

Hand writing pen

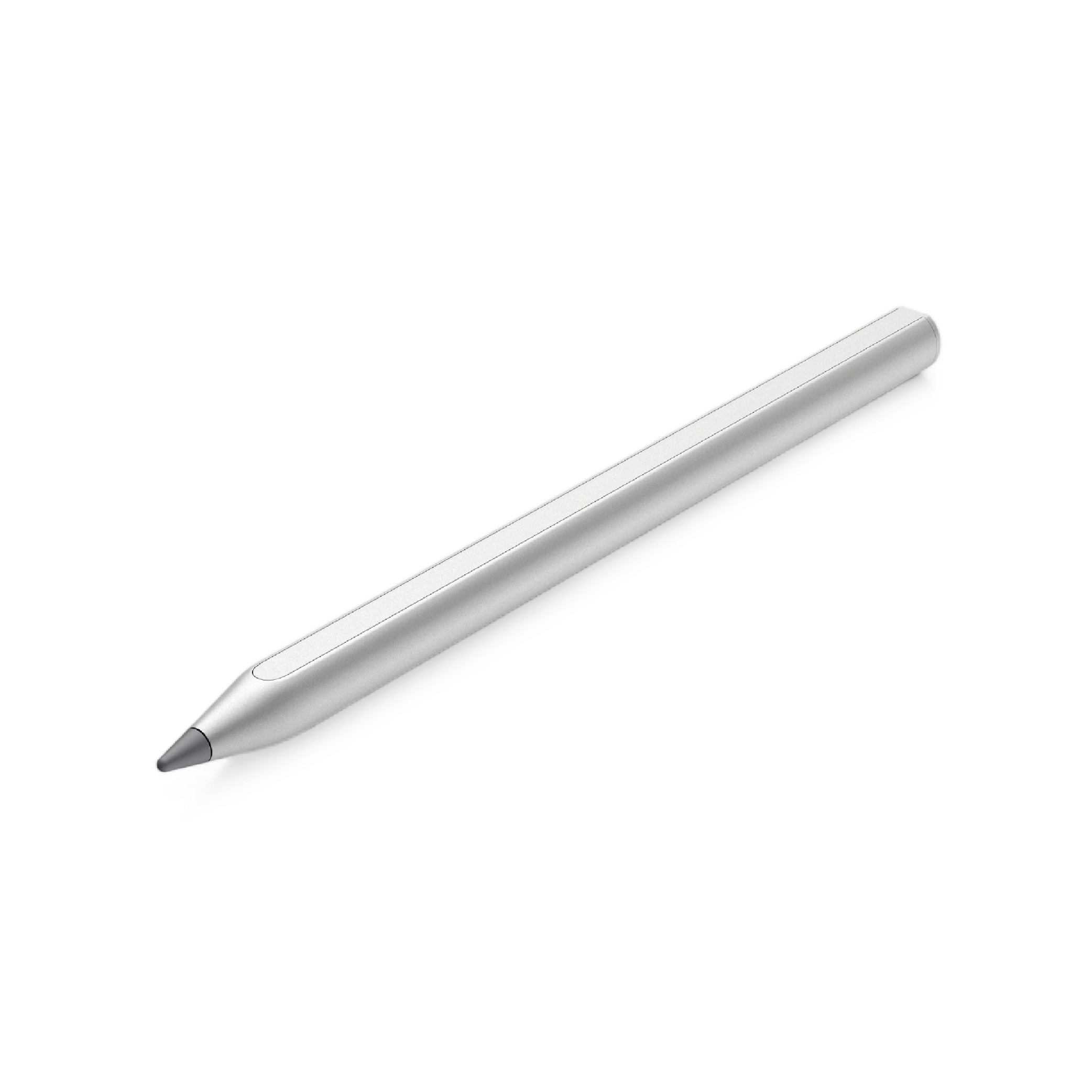

Active capacitive pen
Vehicle Mount

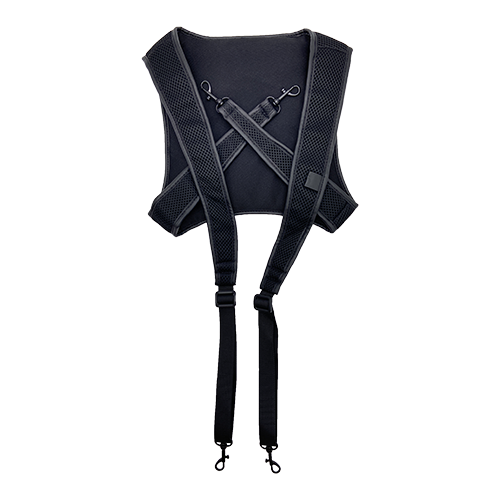

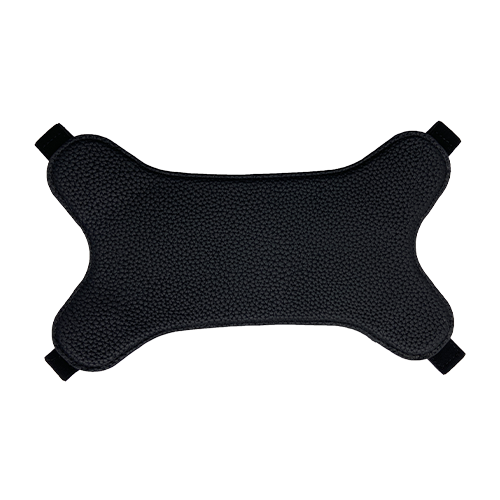

Back Straps

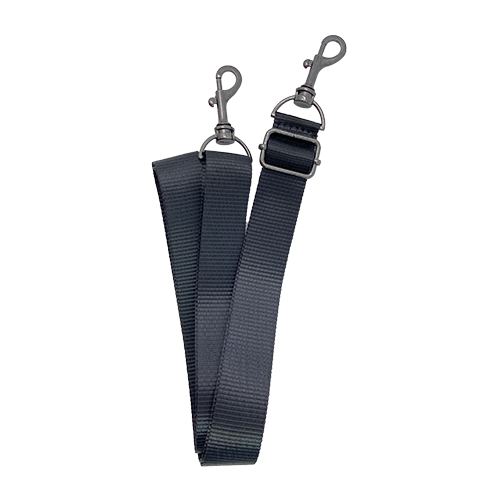

Shoulder girdle

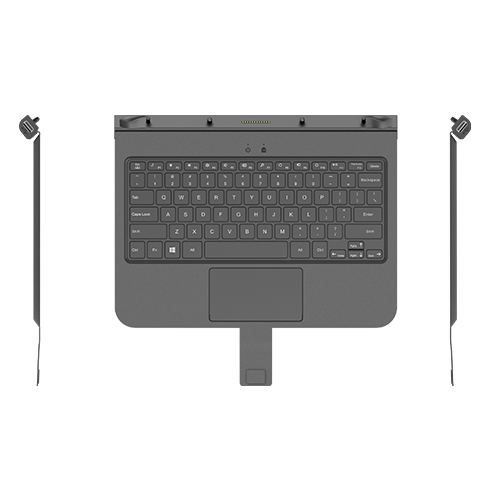

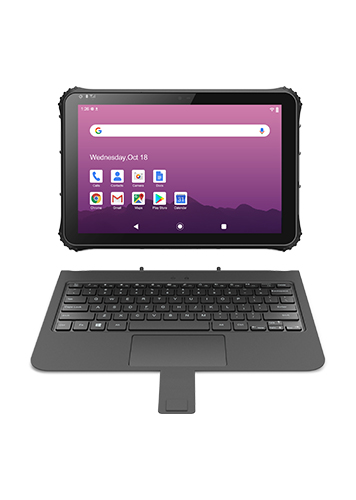

Removeable keyboard

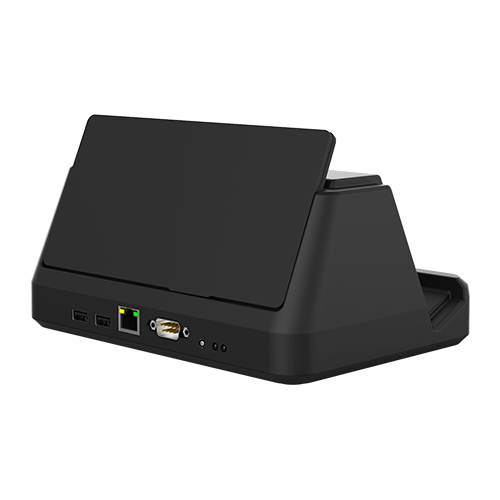

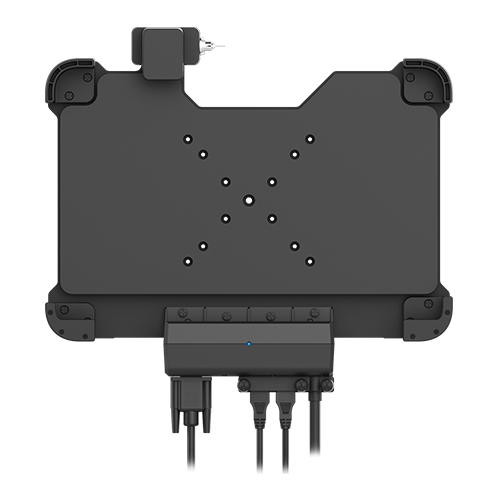

Docking Charger

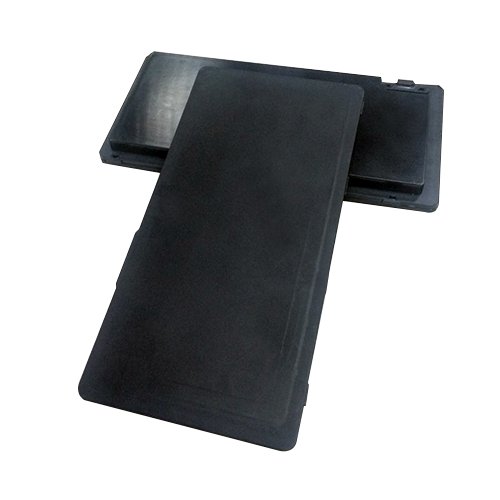

Spare Removeable Battery
Download
.jpg)

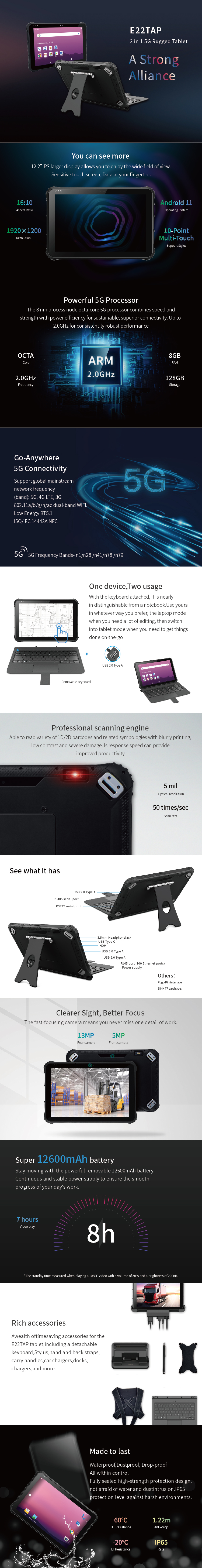

Brochure
|
