Home > Products > Industrial Rugged Tablet > E86TAP

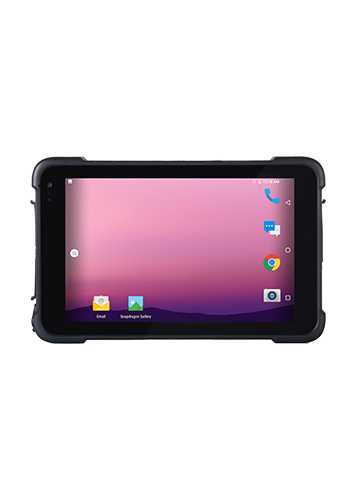

E86TAP

8 inch Android IP67 level Rugged Tablet

Full-Features to Deliver the Best Service

Hot sale Android High-performance Fully Rugged Tablet E86TAP, Rugged lP67 protective grade for waterproof & dustproof, Qualcomm 8 core with Android 14 OS/ GMS and support 1D/2D barcode scanner/RFID NFC. A comfortable size for work, hold it comfortably in one hand, easy to control. Abundant accessorize to be more convenient.Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes.

Features
Specification
Accessories
Download


Standard_Accessories

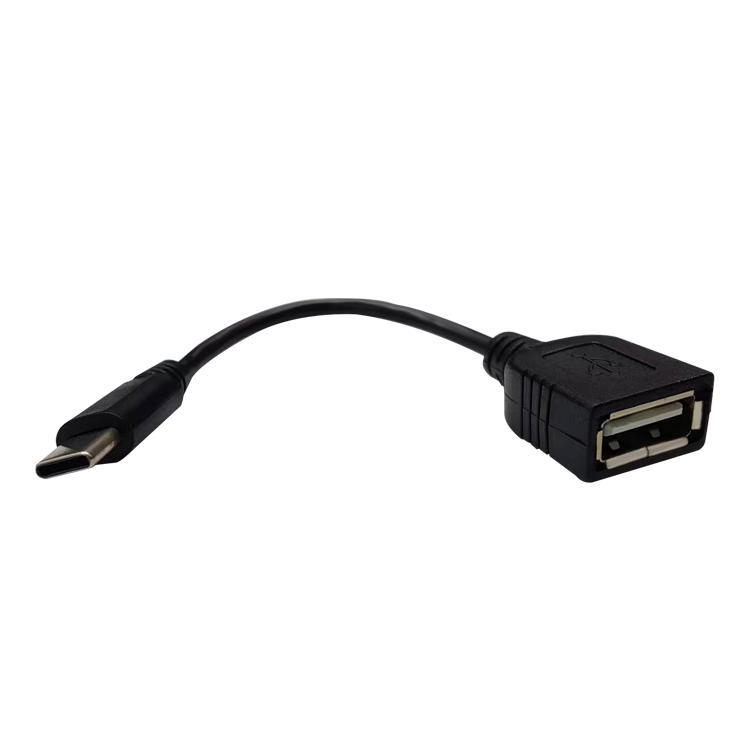

OTG Cable

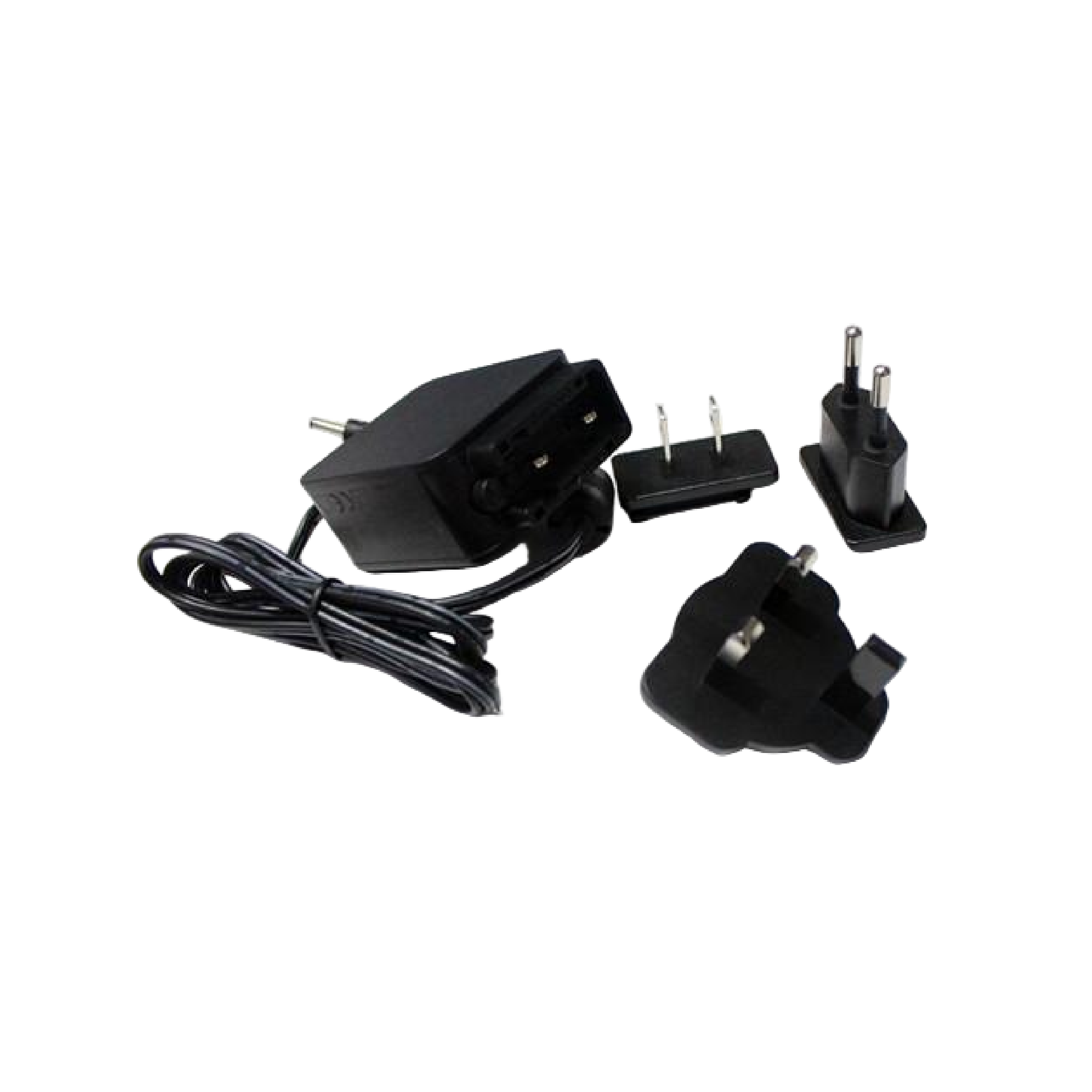

Standard Adaptor

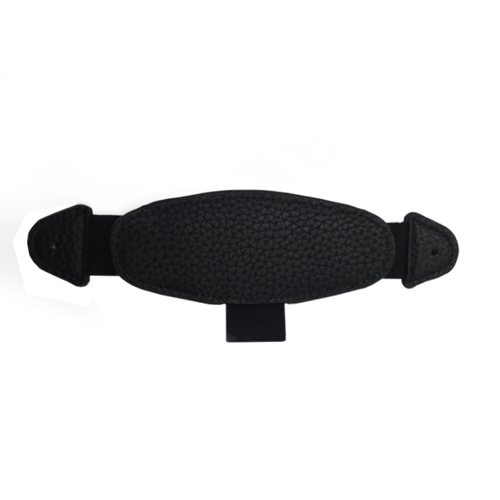

Hand-strap

Optional_Accessories

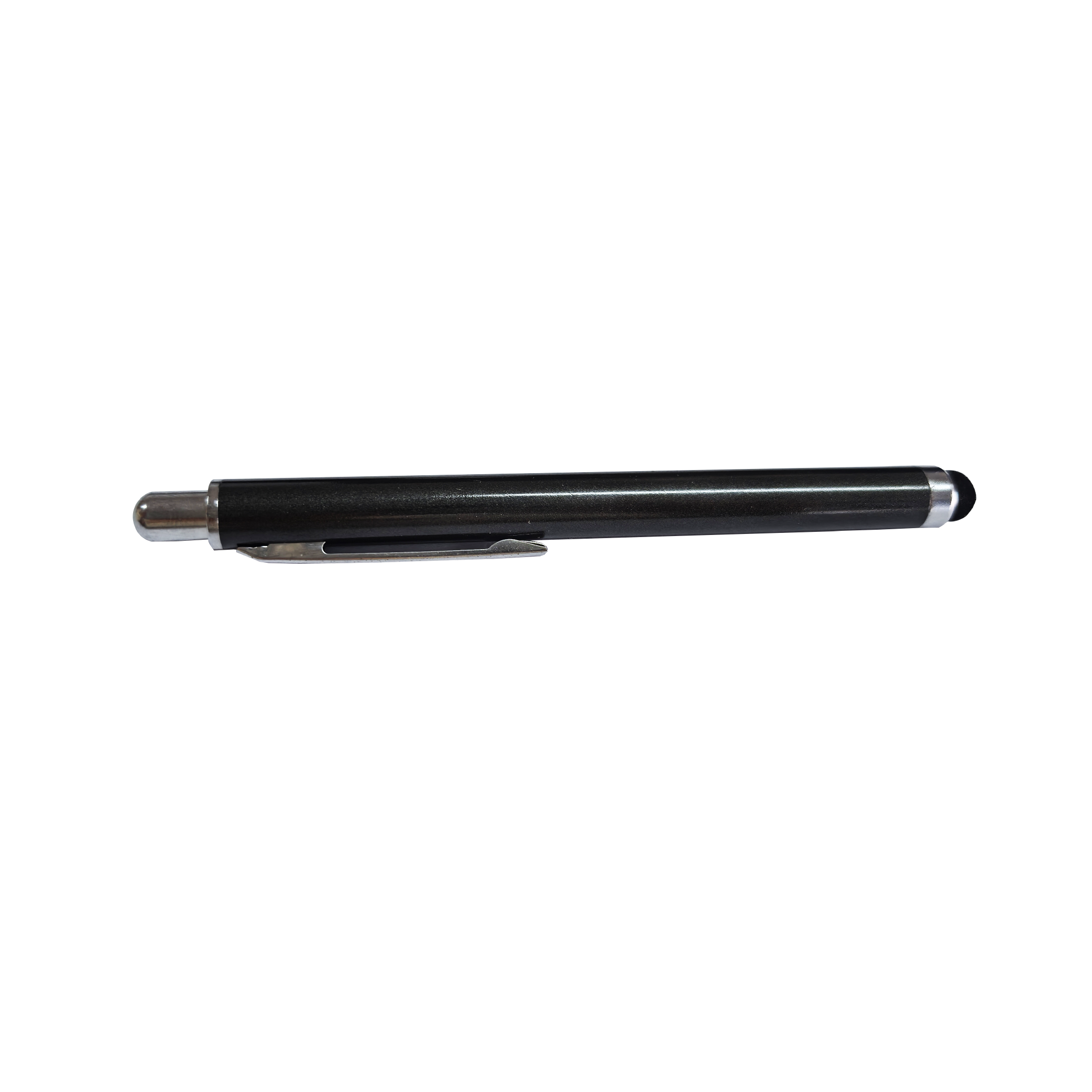

Hand writing pen

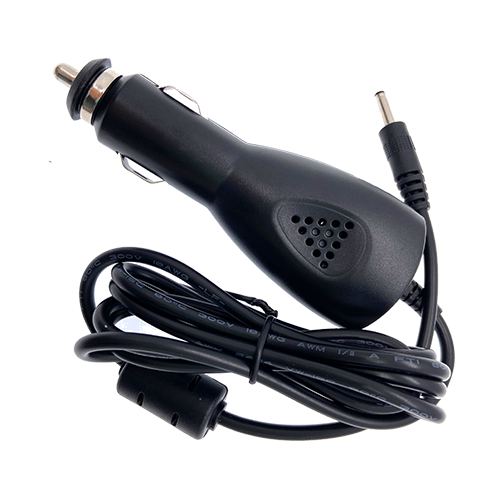

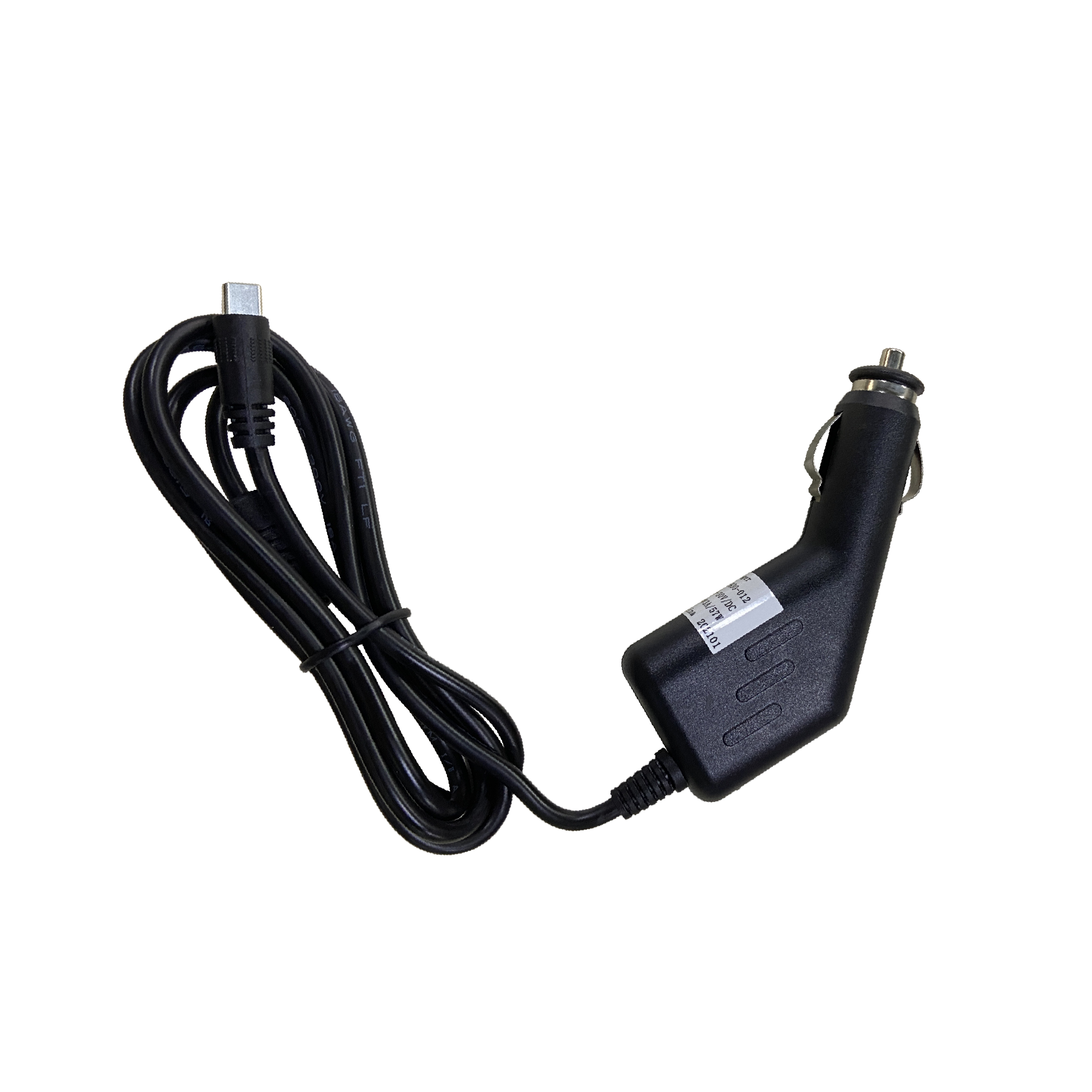

Car charger

Vehicle Mount

Straps

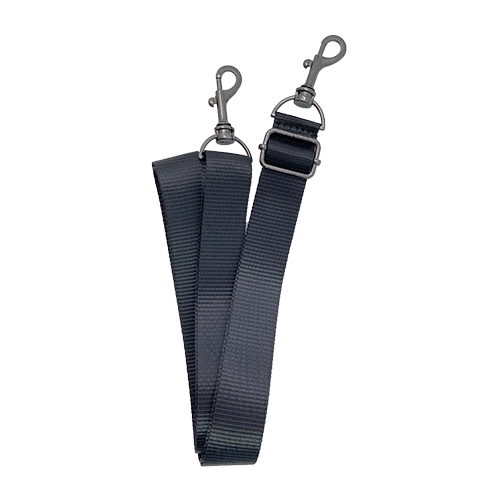

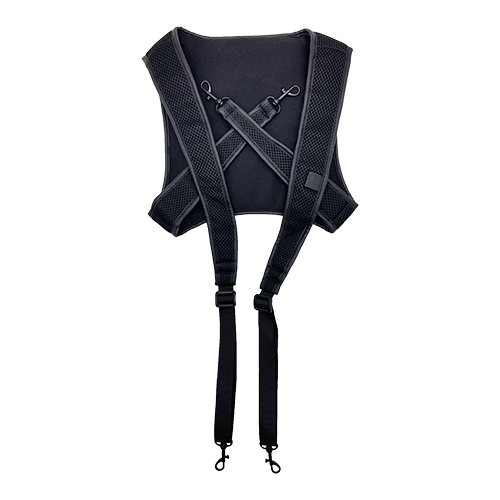

Shoulder girdle

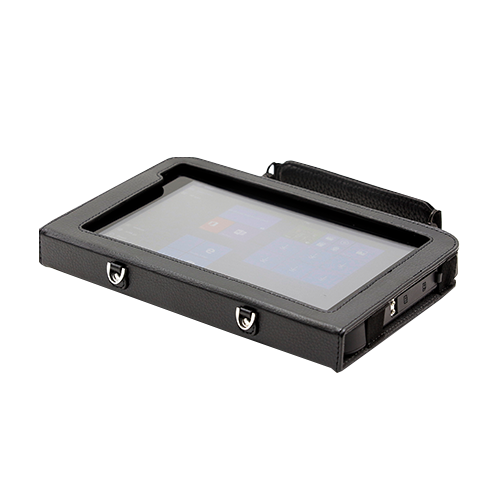

Leather case

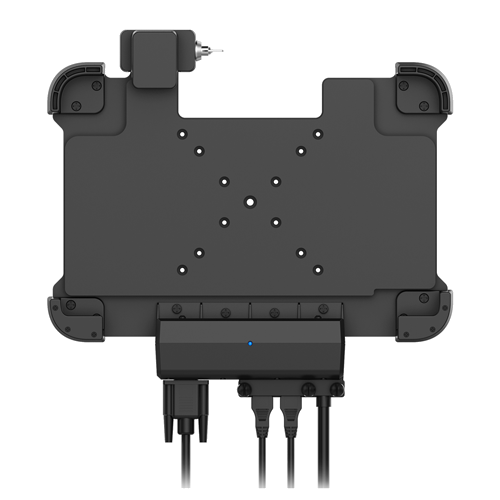

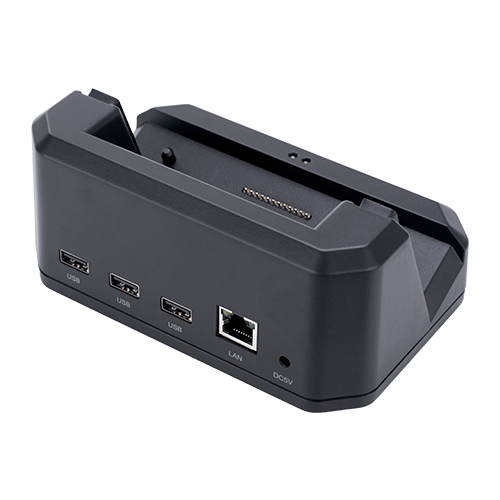

Docking Charger

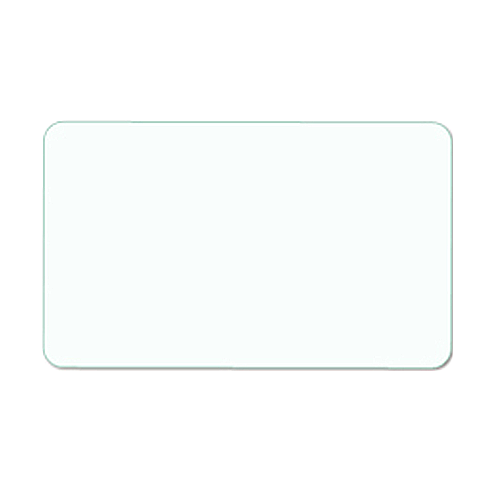

Screen protector

Model	E86TAP
Dimension	22814516.5mm
OS	Android 12 with GMS, Default language：English
CPU	ARM Octa Core 2.2GHz
Weight	Device unit: 715g ，Unit with giftbox and standard accessories:1400g，docking：290g
Display	8 inch 16:10
Memory	8GB RAM+ 128GB ROM
Battery Capacity	3.7V/8500mAh, build in polymer li-ion battery
Resolution	800*1280 IPS LCD， 450Nit

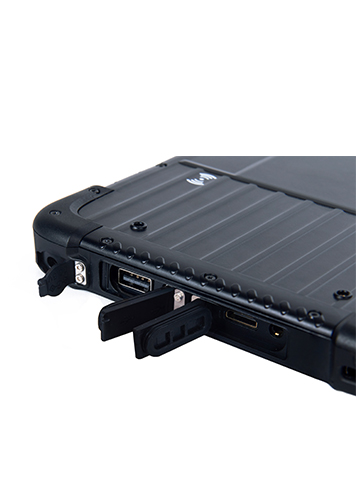

Interface Configuration	USB2.0x1, TypeCx1SIM Card x1, TF Card x1 MAX 512GB12pins Pogo Pin x 13.5mm Standard Ear phone jack x 13.5mm DC jack x1
1D/2D barcode (Optional)	Support SE4710 Serier Scan Engines
IP rating	IP67
Drop Resistance	1.5m Drop Height, in operation status
Camera	Front 5.0MP，Rear 13.0MP with Flash
3G/4G	LTE FDD: B1/B2/B3/B4/B5/B7/B8/B17/B28A&B LTE TDD: B38/B39/B40/B41NWCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8
Operate Temperature	-20°C ～ 60 °C
Store Temperature	-30°C ～ 70 °C
NFC/RFID	Support, 13.56MHz, Support ISO/IEC 14443A protocol,Card reading distance: 4cm
Wifi	WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI intel 3165D2WG
Bluetooth	BT4.2 (BLE) class1 transmission distance：10m
GPS	U-blox NEO-7 Support :GPS; Capture sensitivity: -160 dBm；Cool Start Time：50second，Hot start time：28seconds，frequency：0.25 Hz … 10 MHz (configurable)
Optional Accessories	Docking Charger,Hand-strap,Vehicle Mount,Car Charger,Back-strap,Leather Cover,Shoulder-strap,Stylus, Carry handle
